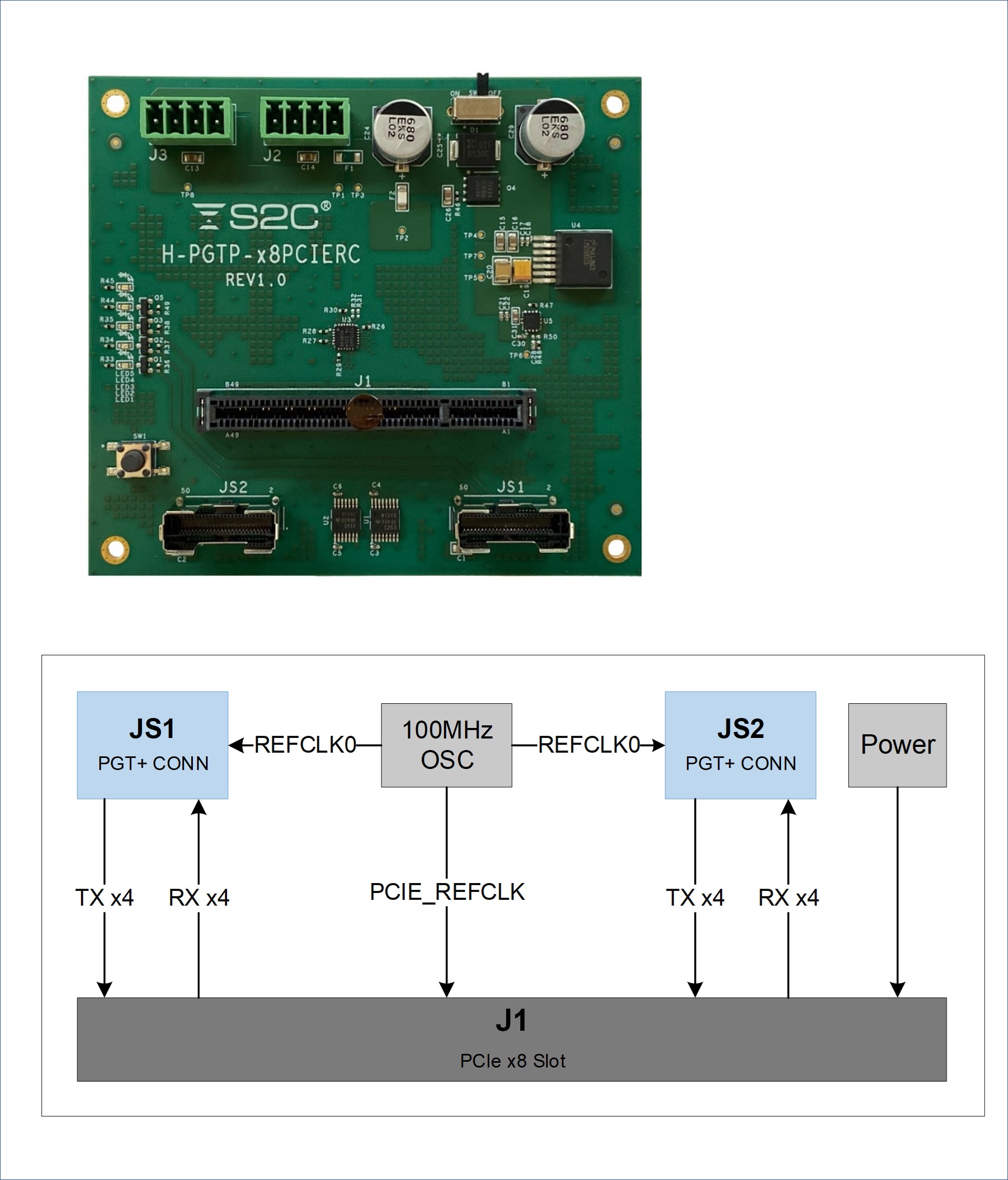

8-Lane PCIe Root Complex PGT+ Module
Product features
One x8 PCIe Slot
Three user LEDs
One user pushbutton
Occupies two PGT+ connectors
Product package (H-PGTP-x8PCIERC)
One 8-Lane PCIe Root Complex PGT+ Module
Two 1000 mm PGT+ cables
One 12 V power adapter

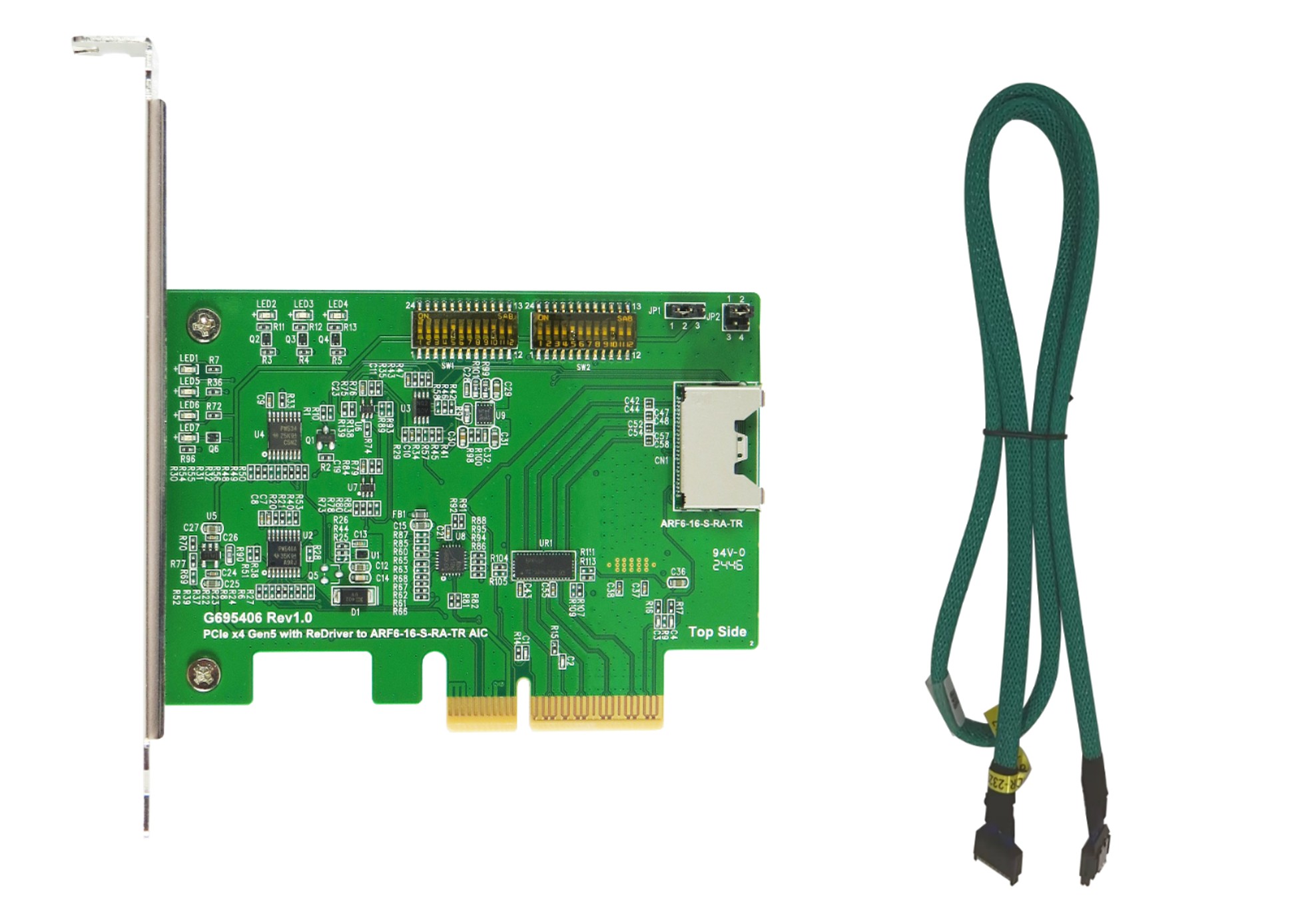

4-Lane PCIe Gen5 PGT+ ReDriver Kit
Product features
Supports up to PCIe Gen5 x4
Supports up to PCIe Gen4 x4
Occupies one PGT+ connector
Product package (H-PGTP-x4PCIERK)
One 4-Lane PCIe Gen5 PGT+ ReDriver Kit
One 1000 mm PGT+ cable

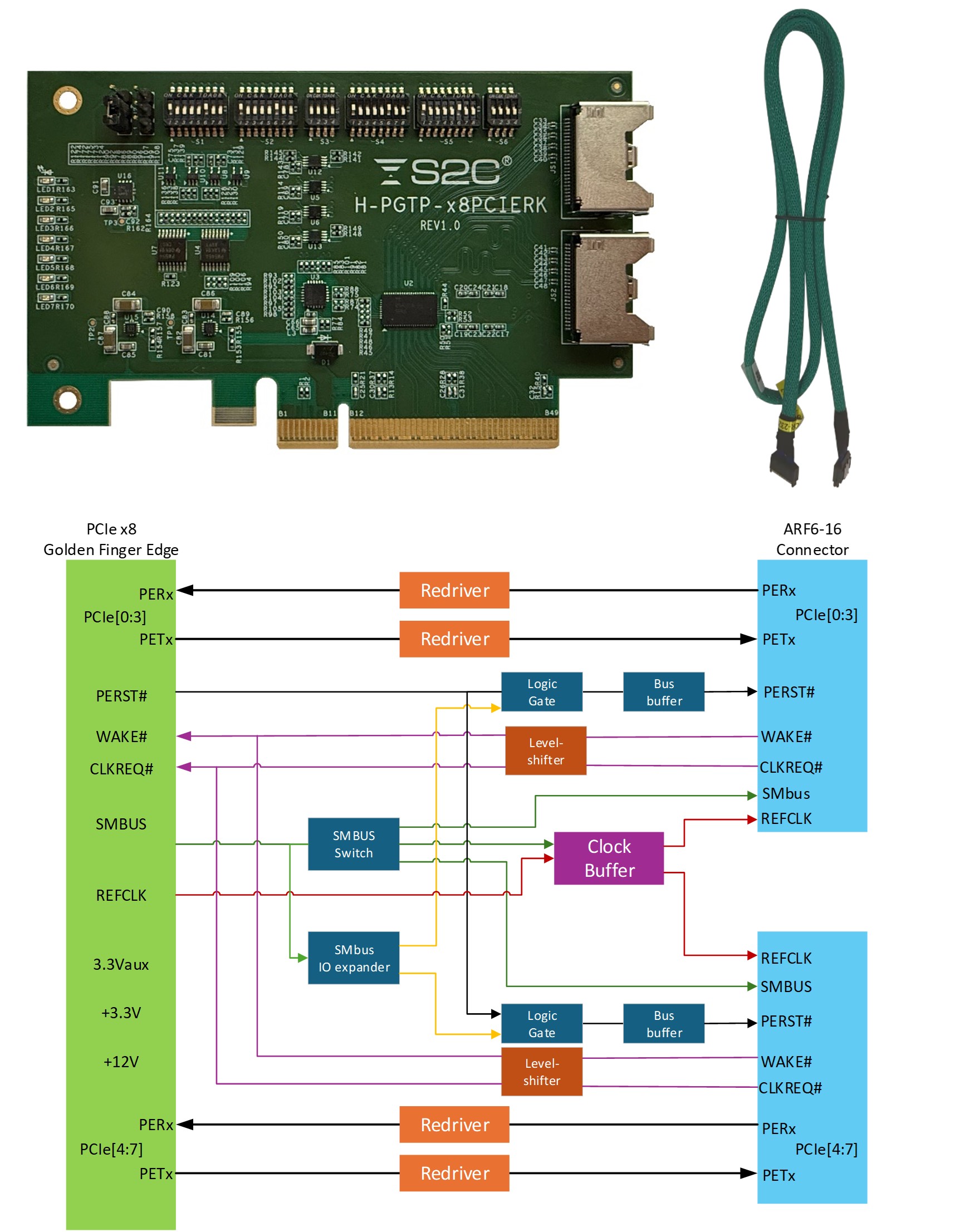

8-Lane PCIe Gen5 PGT+ ReDriver Kit
Product features
One 8-lane PCIe Edge connector
Seven status LEDs
Occupies two PGT+ connectors
Product package (H-PGTP-x8PCIERK)
One 8-Lane PCIe Gen5 PGT+ ReDriver Kit
Two 1000 mm PGT+ cables

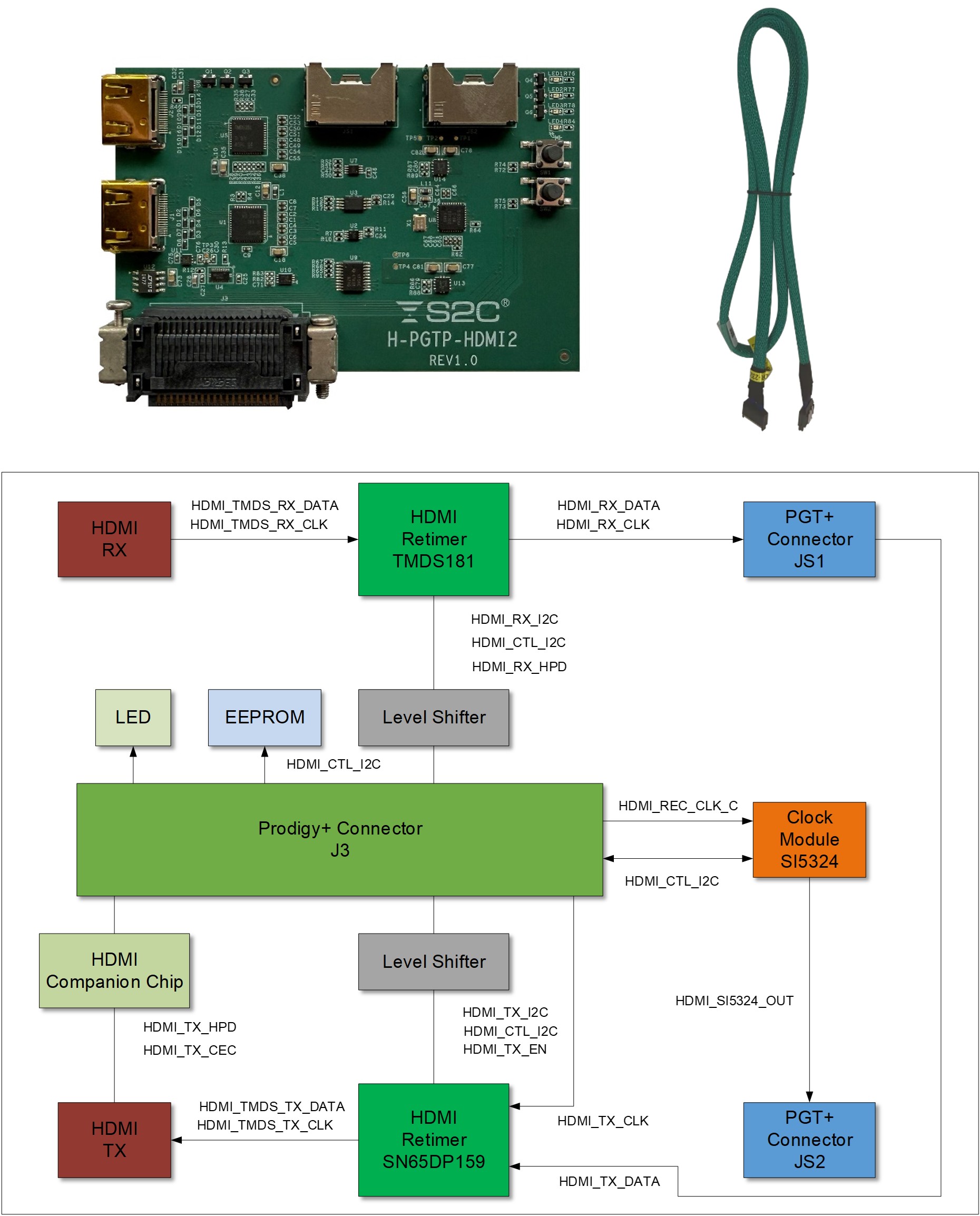

HDMI2.0 PGT+ Module
Product features
Provides one HDMI TX connector
Provides one HDMI RX connector
Provides two pushbuttons
Provides three LEDs
Occupies two PGT+ connectors and one Prodigy+ connector
Product package (H-PGTP-HDMI2)
One HDMI2.0 PGT+ Module
Two 1000 mm PGT+ cables

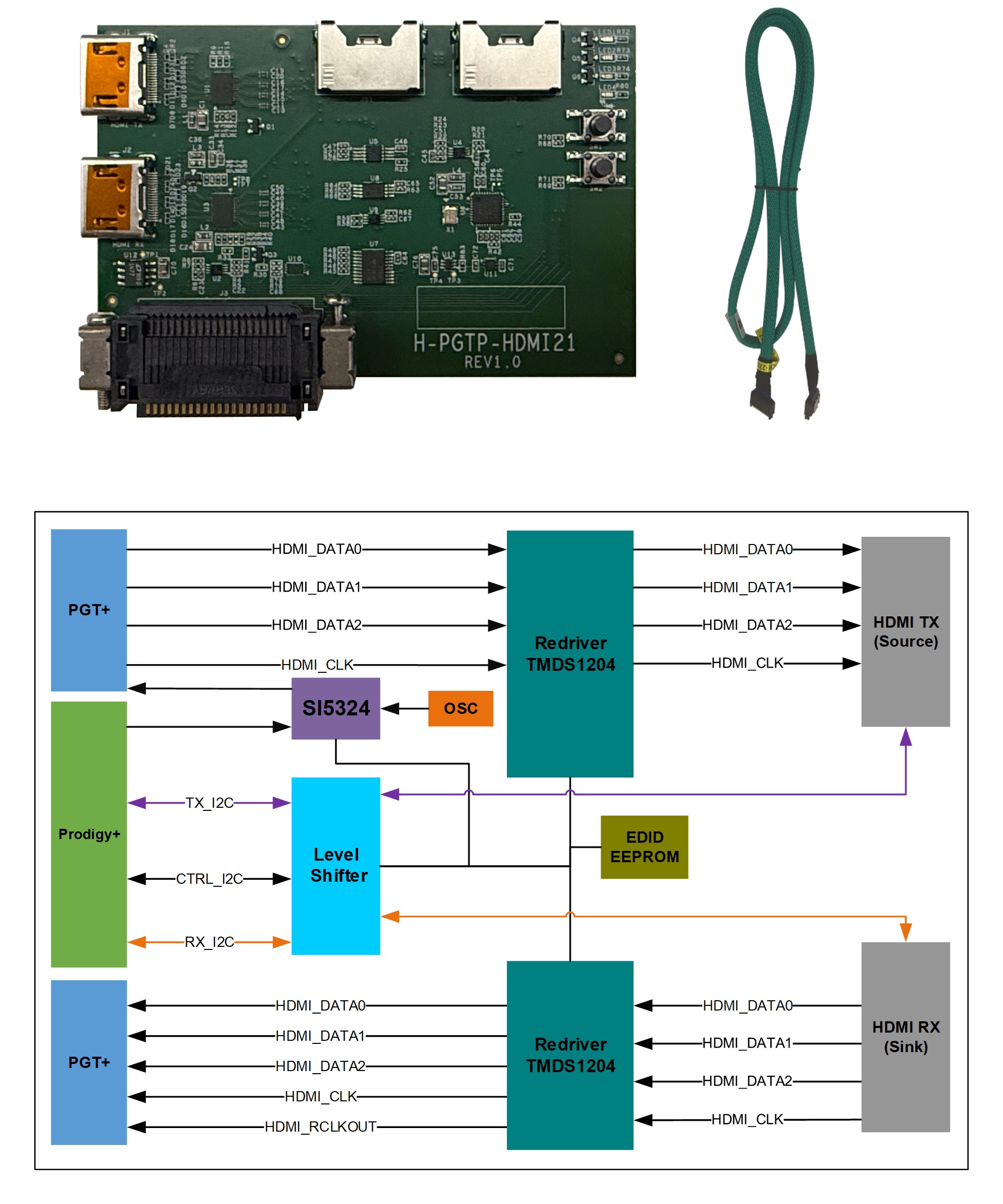

HDMI2.1 PGT+ Module
Product features
Provides one HDMI TX connector
Provides one HDMI RX connector
Provides two pushbuttons
Provides three LEDs
Occupies two PGT+ connectors and one Prodigy+ connector
Product package (H-PGTP-HDMI21)
One HDMI2.1 PGT+ Module
Two 1000 mm PGT+ cables

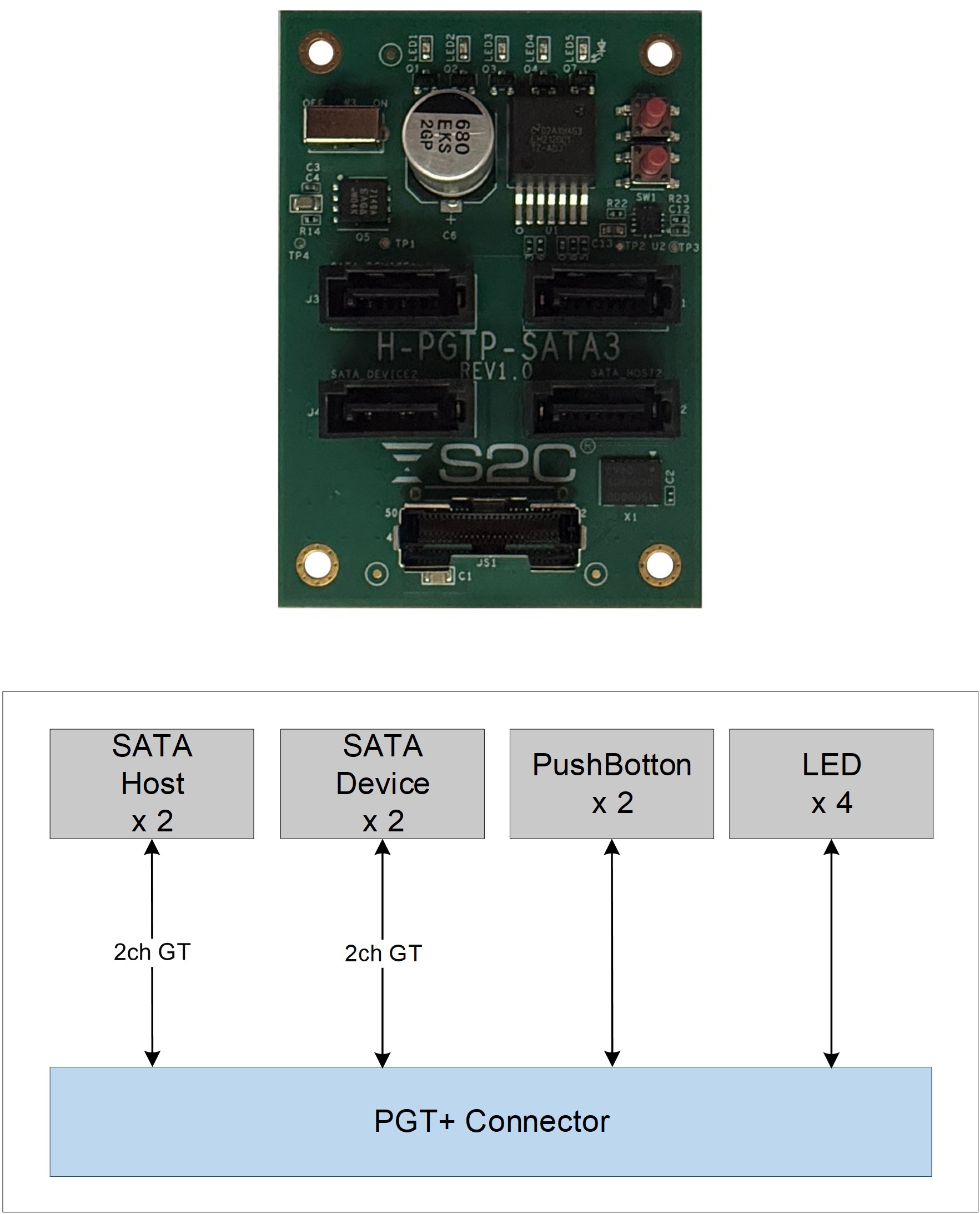

SATA3.0 PGT+ Module
Product features
Provides four SATA connectors, two host and two device
Provides one 150MHz reference clock
Provides two pushbuttons
Provides four LEDs
Occupies one PGT+ connector
Product package (H-PGTP-SATA3)
One SATA3.0 PGT+ Module

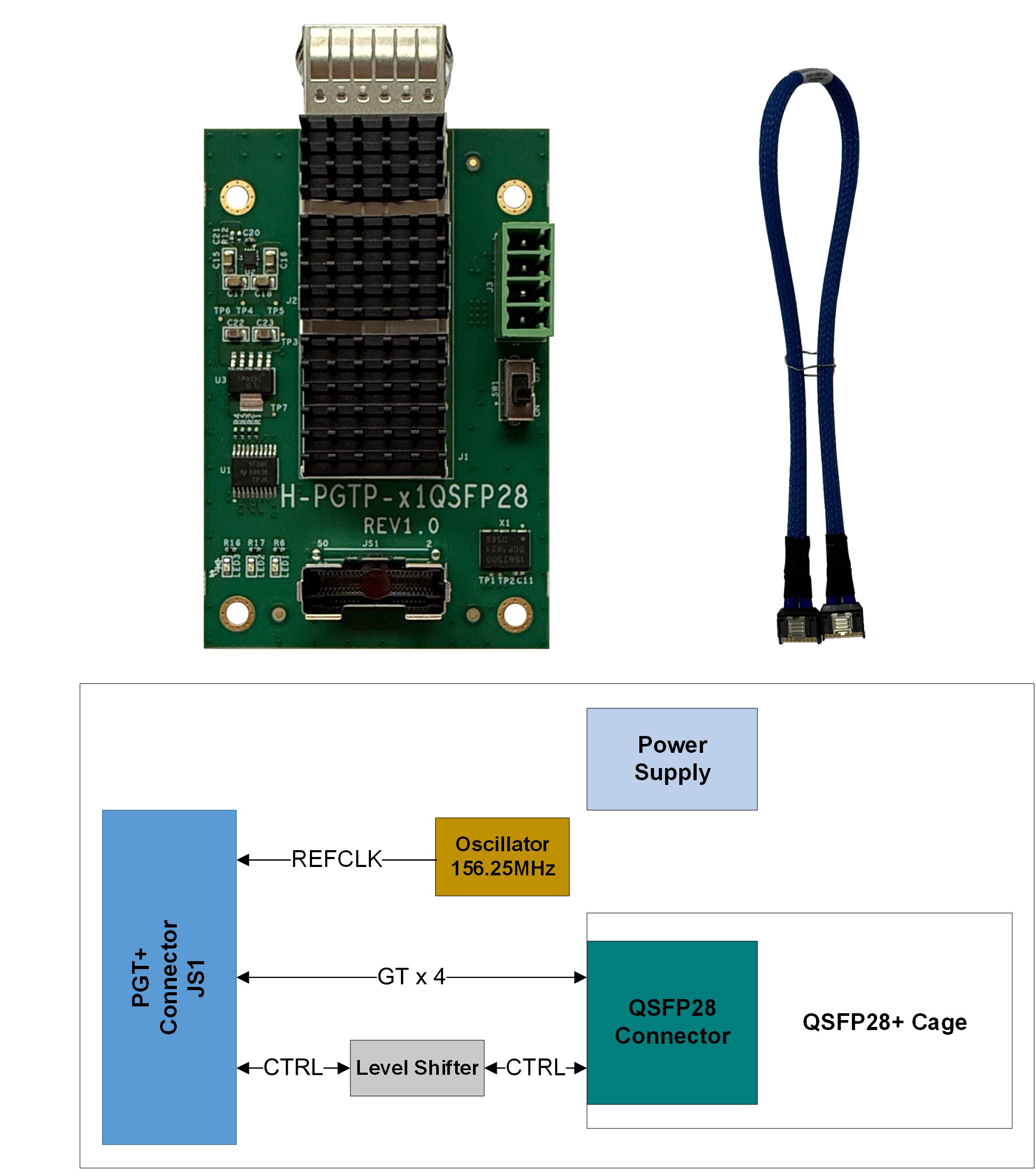

QSFP28 PGT+ Module
Product features
Provides one QSFP28 interface
Provides one 156.25MHz differential oscillator
Provides three LEDs
Occupies one PGT+ connector
Product package (H-PGTP-x1QSFP28)
One QSFP28 PGT+ Module
One 500mm PGT+ cable

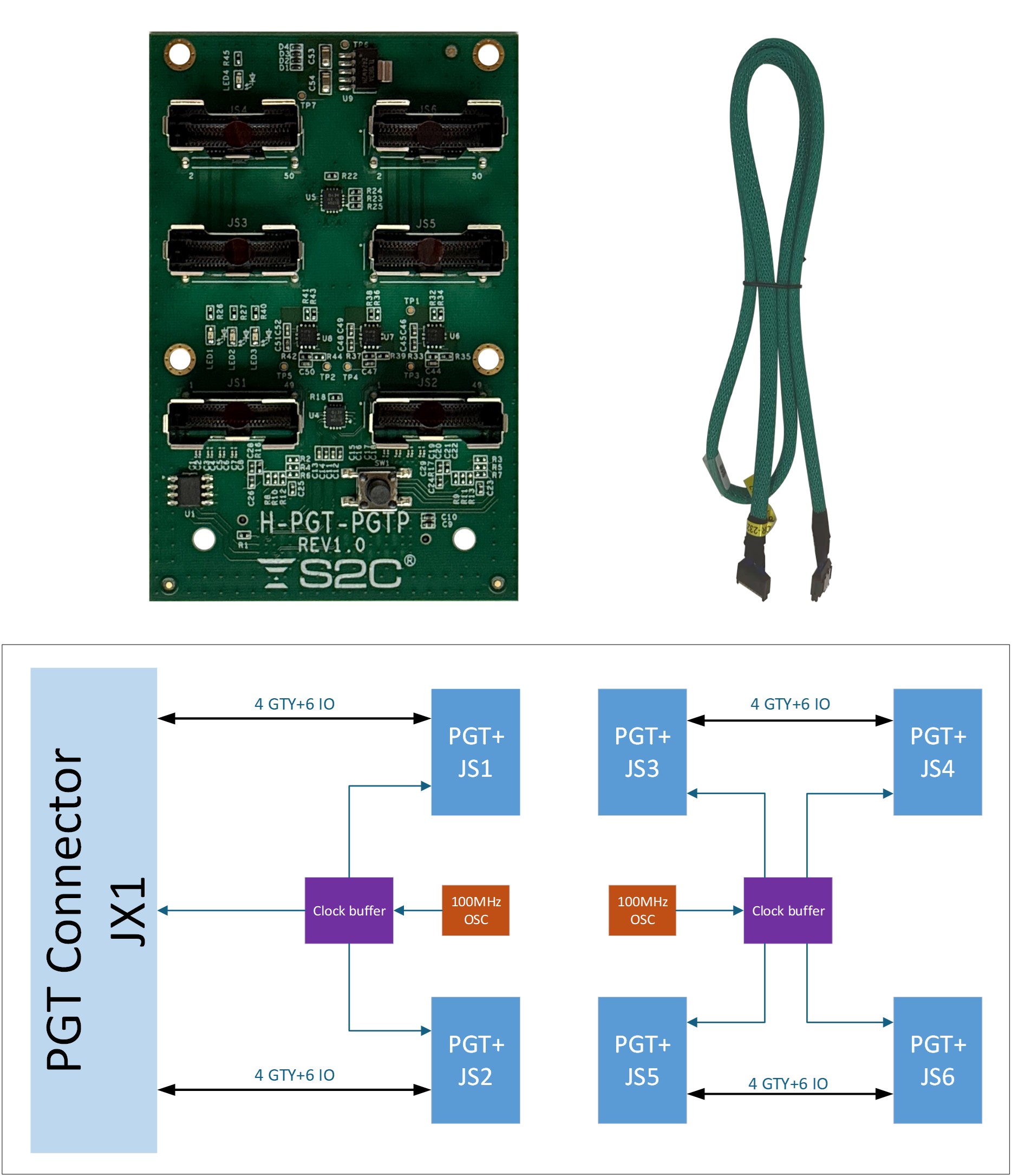

PGT to PGT+ Converter Module
Product features
Converts one PGT connector to two PGT+ connectors (JS1 and JS2), providing a 100 MHz reference clock
Supports PGT+ interconnections (JS3-JS4, JS5-JS6) with 100 MHz reference clock for S8 series Logic System
Provides four LEDs
Product package (H-PGT-PGTP)
One PGT to PGT+ Converter Module
One 1000mm PGT+ cable

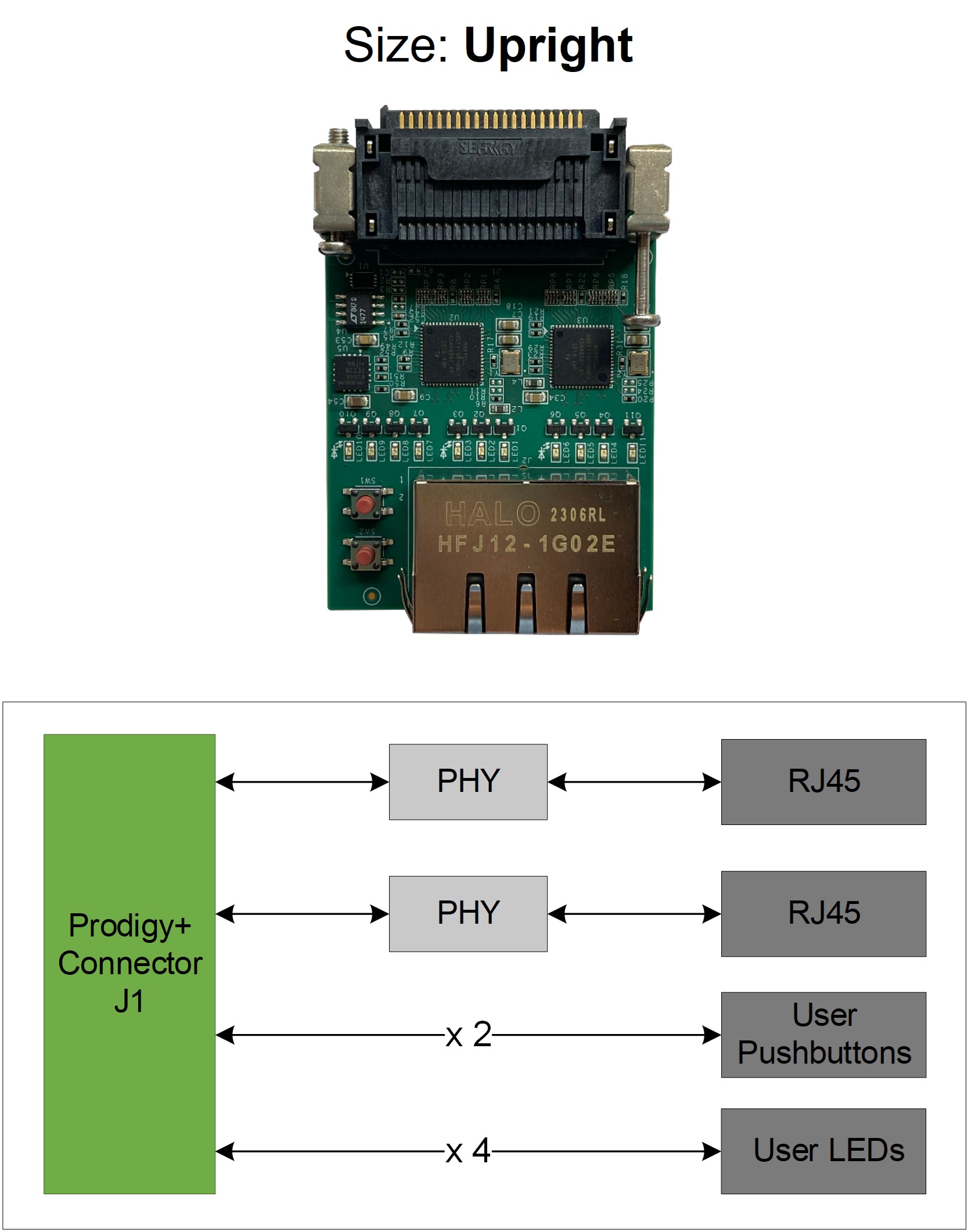

Prodigy+ 2 Channel RGMII PHY Module
Product features
Two RGMII Ethernet interfaces
Two pushbuttons
Four user LEDs
Occupies one Prodigy+ connectors
Product package (H-PMP-x2RGMII)
One Prodigy+ 2 Channel RGMII PHY Module

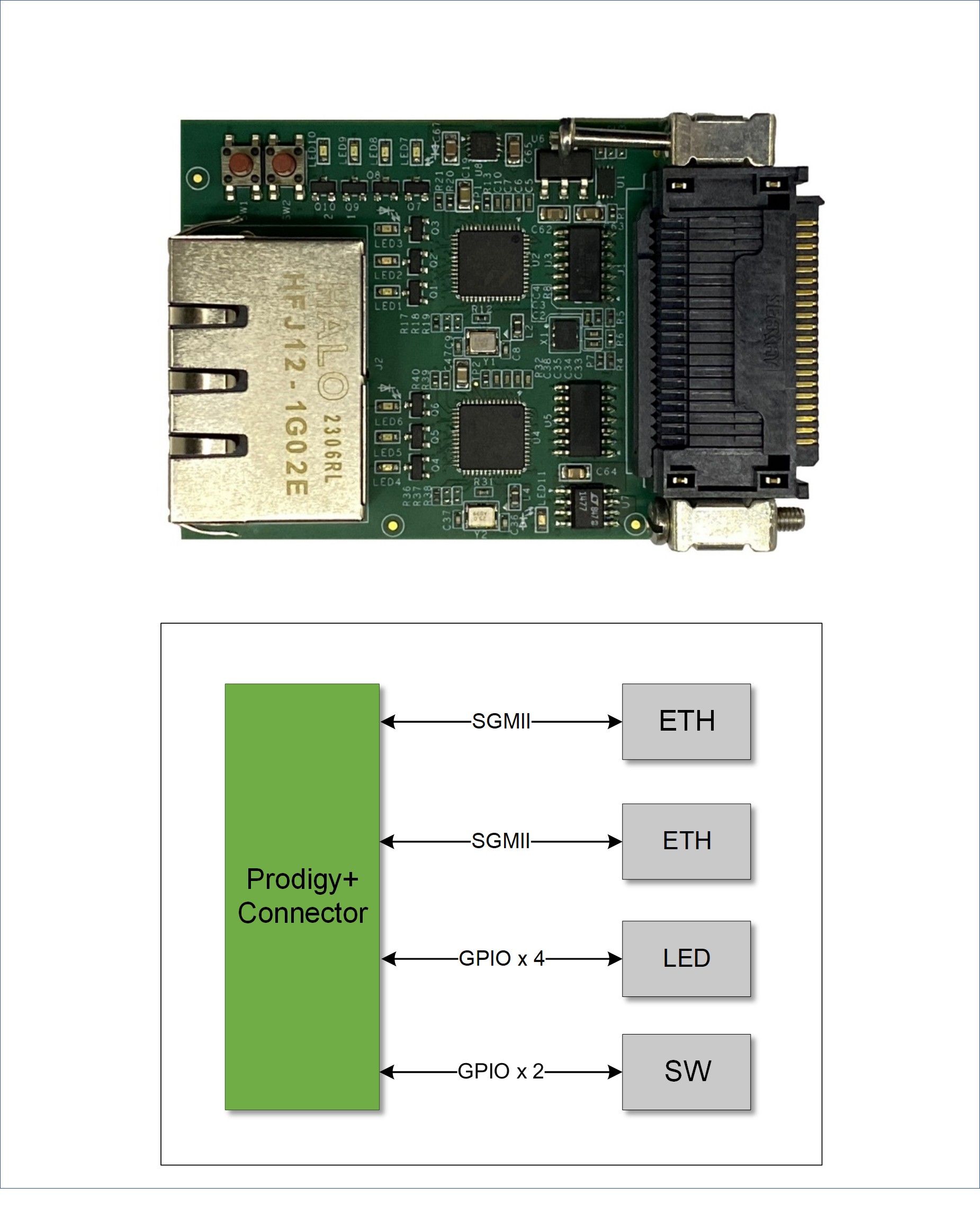

Prodigy+ 2 Channel SGMII PHY Module
Product features
Two SGMII Ethernet interfaces
One on-board 125Mhz LVDS OSC providing system reference clock
Two pushbuttons
Four LEDs
Occupies one Prodigy+ connector
Product package (H-PMP-x2SGMII)
One Prodigy+ 2 Channel SGMII PHY Module

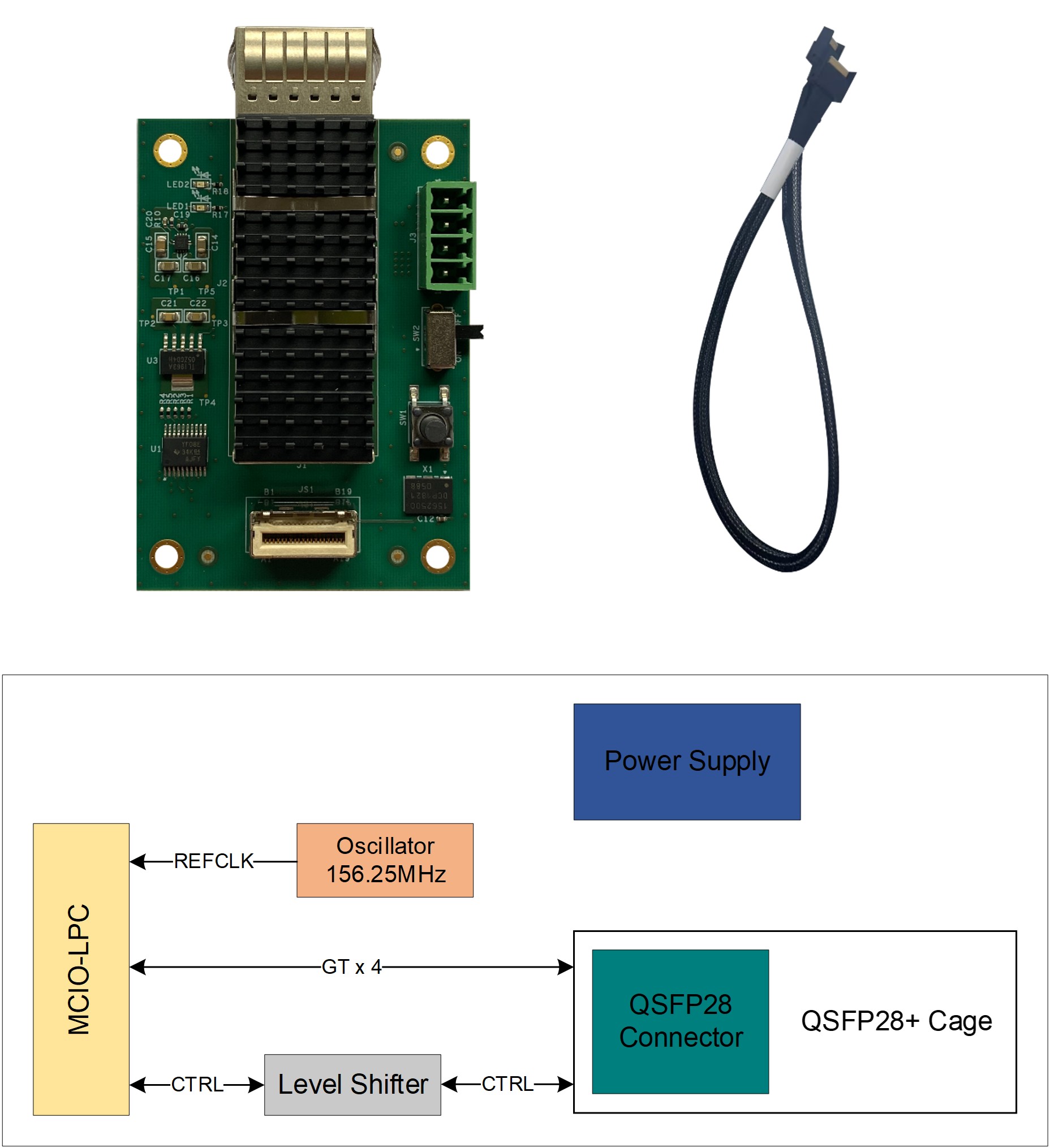

QSFP28 MCIO-LPC Module
Product features
One QSFP28 connector
One MCIO-LPC connector
One 156.25MHz differential oscillator
One user pushbutton
Two LEDs
Product package (H-MCIO-x1QSFP28)
One QSFP28 MCIO-LPC Module
One 500 mm MCIO-LPC cable

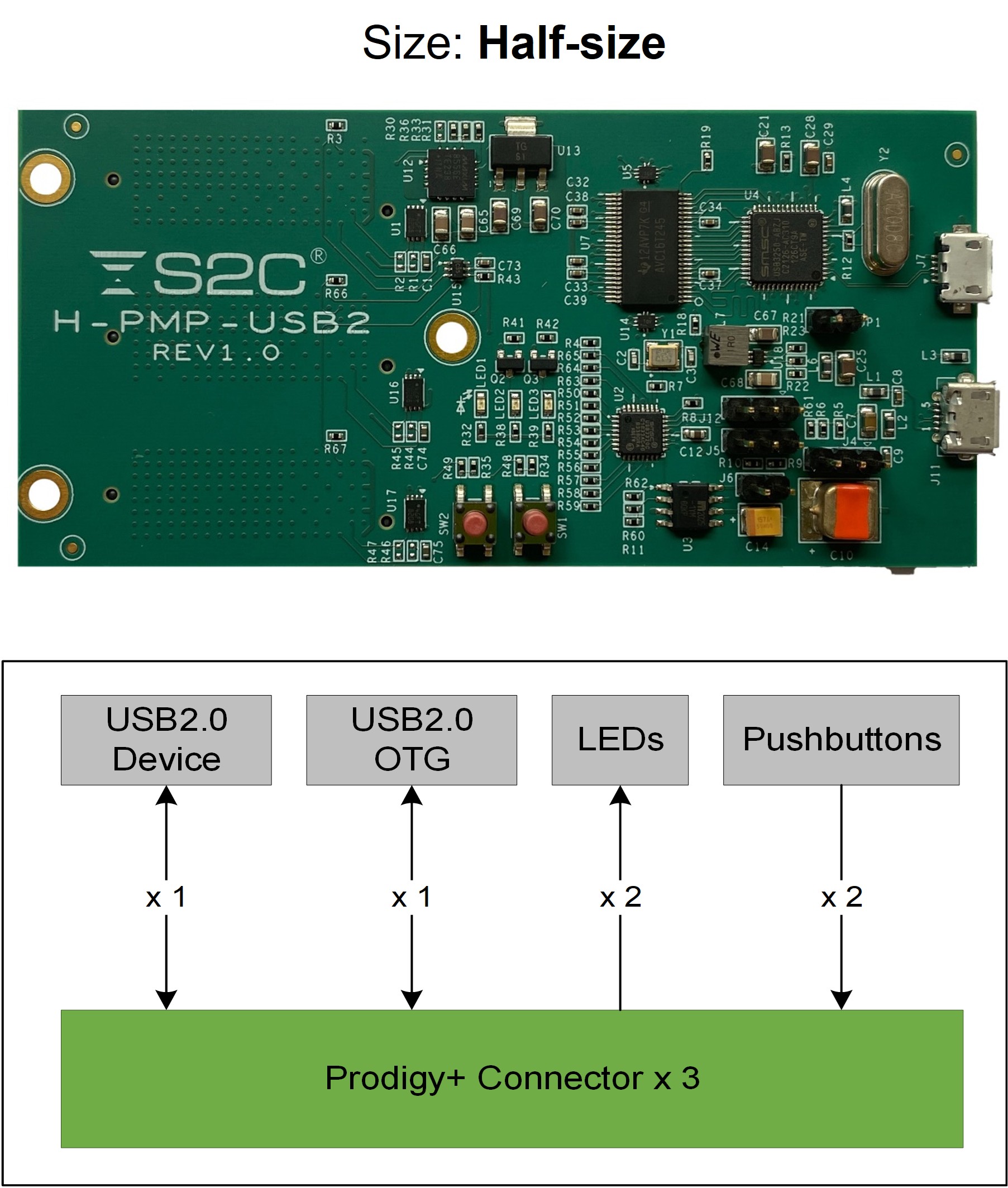

Prodigy+ USB2.0 Interface Module
Product features
Supports USB2.0 host, device and OTG mode
Supports ULPI and UTMI interface
Provides two user LEDs
Provides two pushbuttons
Occupies three Prodigy+ connectors
Product package (H-PMP-USB2)
One Prodigy+ USB2.0 Interface Module

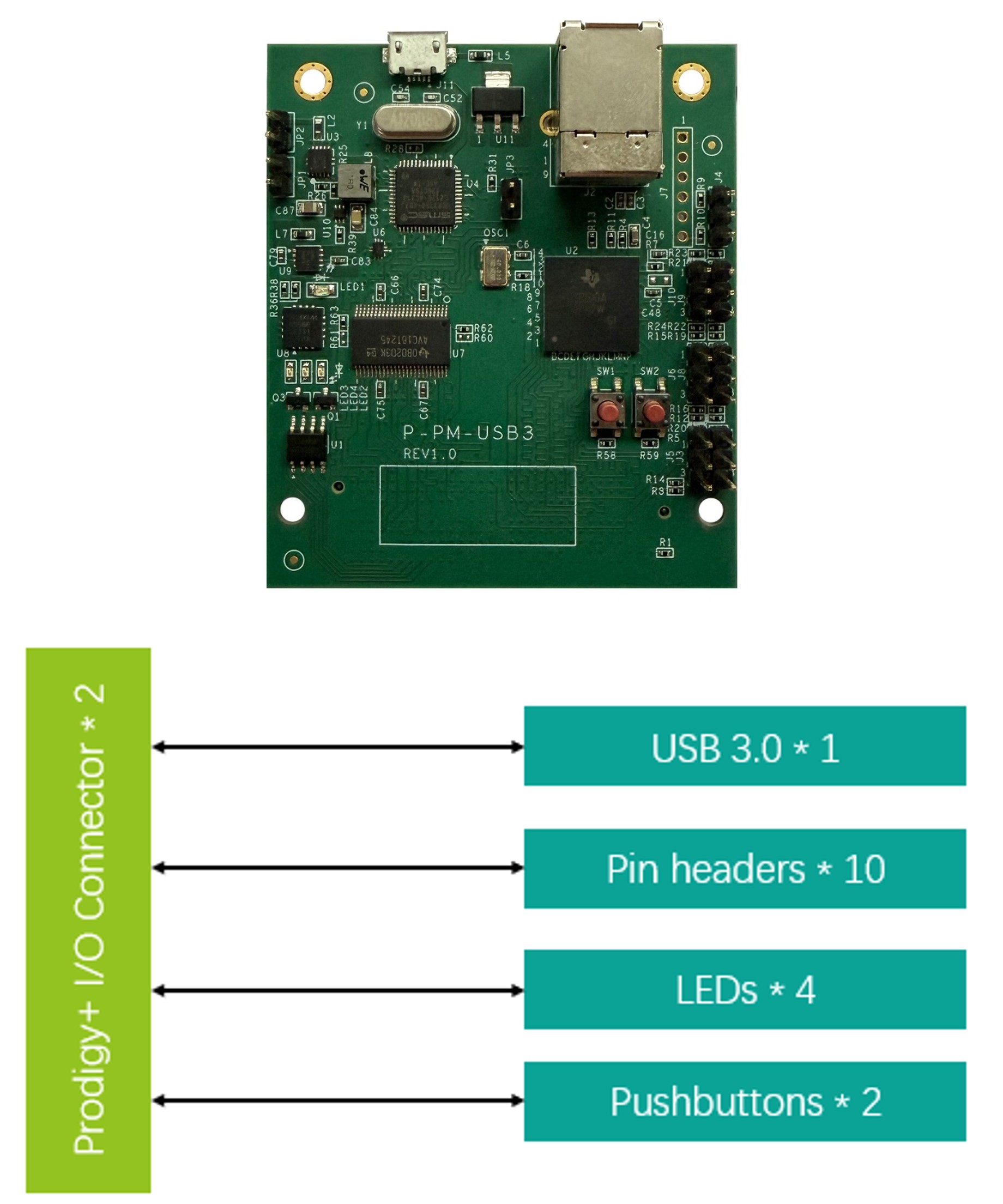

Prodigy+ USB3.0 Interface Module
Product features
Supports USB3.0 PIPE host and device mode
Supports USB2.0 ULPI host and device mode
Provides ten Pin Headers
Provides four pushbuttons
Provides two LEDs
Occupies two Prodigy+ connectors
Product package (H-PMP-USB3)
One Prodigy+ USB3.0 Interface Module

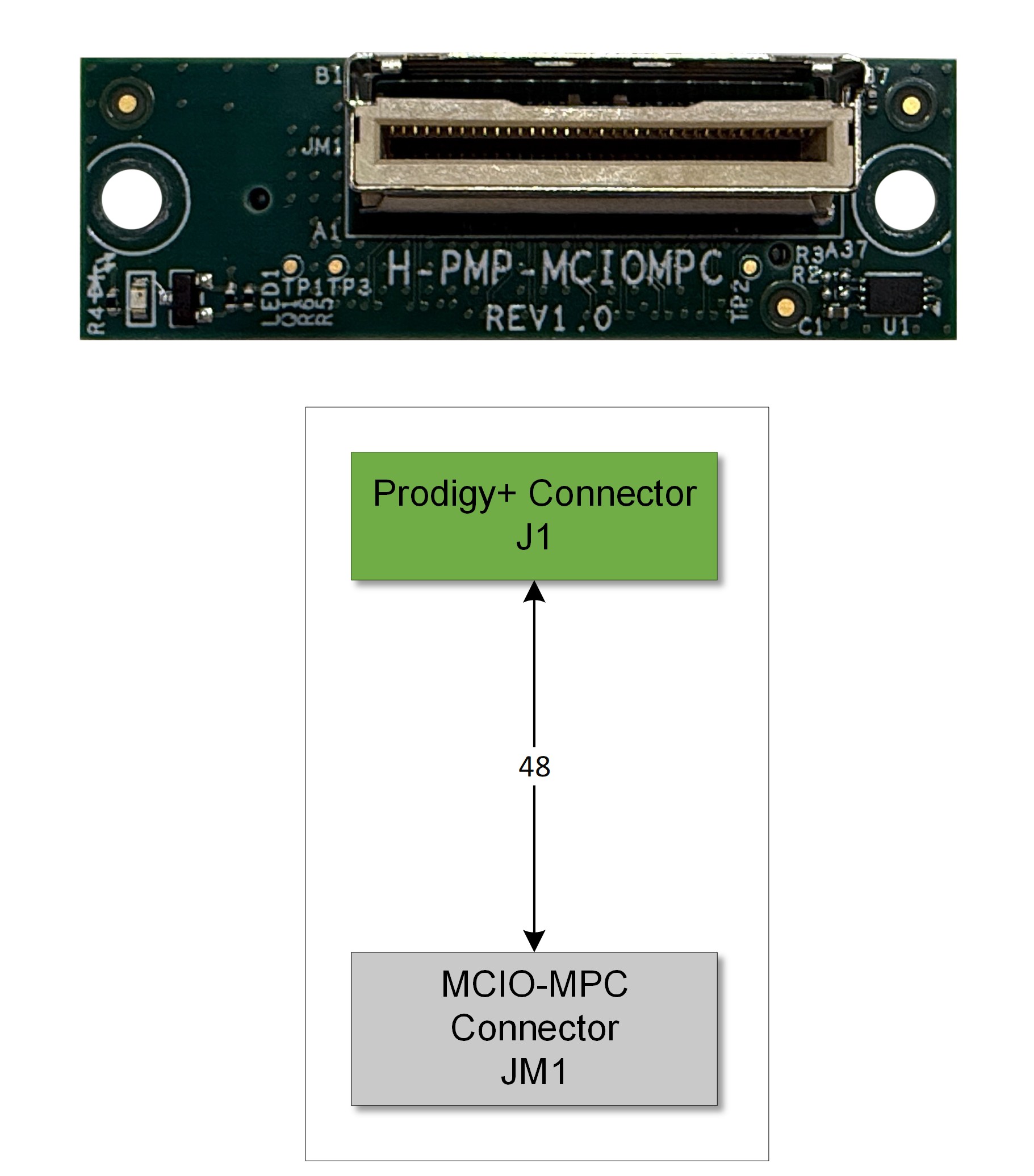

Prodigy+ to MCIO-MPC Converter Module
Product features
Converts one Prodigy+ connector to one MCIO-MPC connector.
Occupies one Prodigy+ connector.
Product package (H-PMP-MCIOMPC)
One Prodigy+ to MCIO-MPC Converter Module

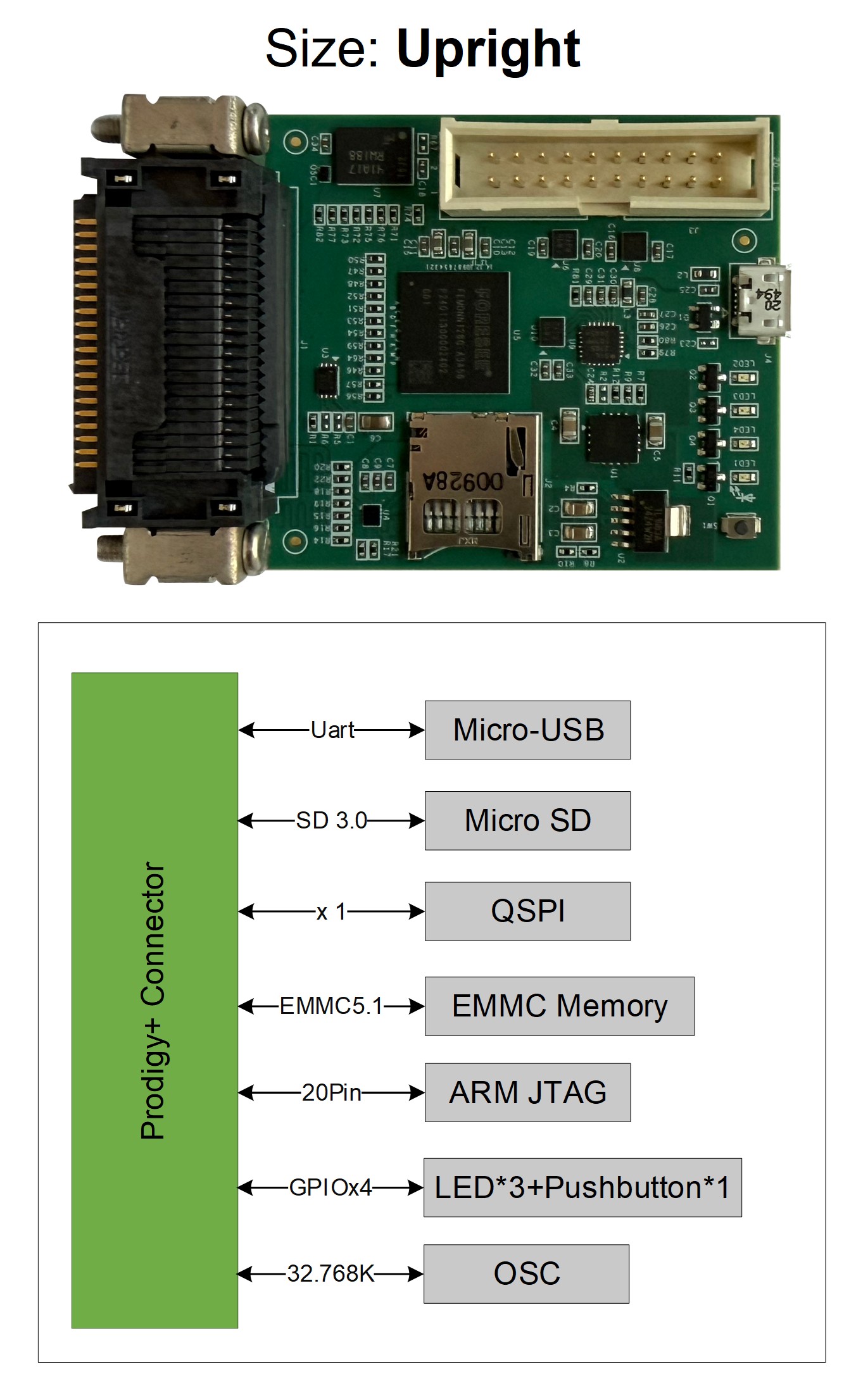

Prodigy+ EMMC5.1 Memory Module
Product features
Provides one QSPI flash
Provides one micro SD3.0 interface
Provides one micro-USB port
Provides one EMMC5.1 memory
Provides one ARM JTAG connector (20-pin)
Provides one 32.768K oscillator
Provides three LEDs and one pushbutton
Occupies one Prodigy+ connector
Product package (H-PMP-EMMC51)
One Prodigy+ EMMC5.1 Memory Module
One Micro SD 3.0 card
One 100 cm Micro-USB cable

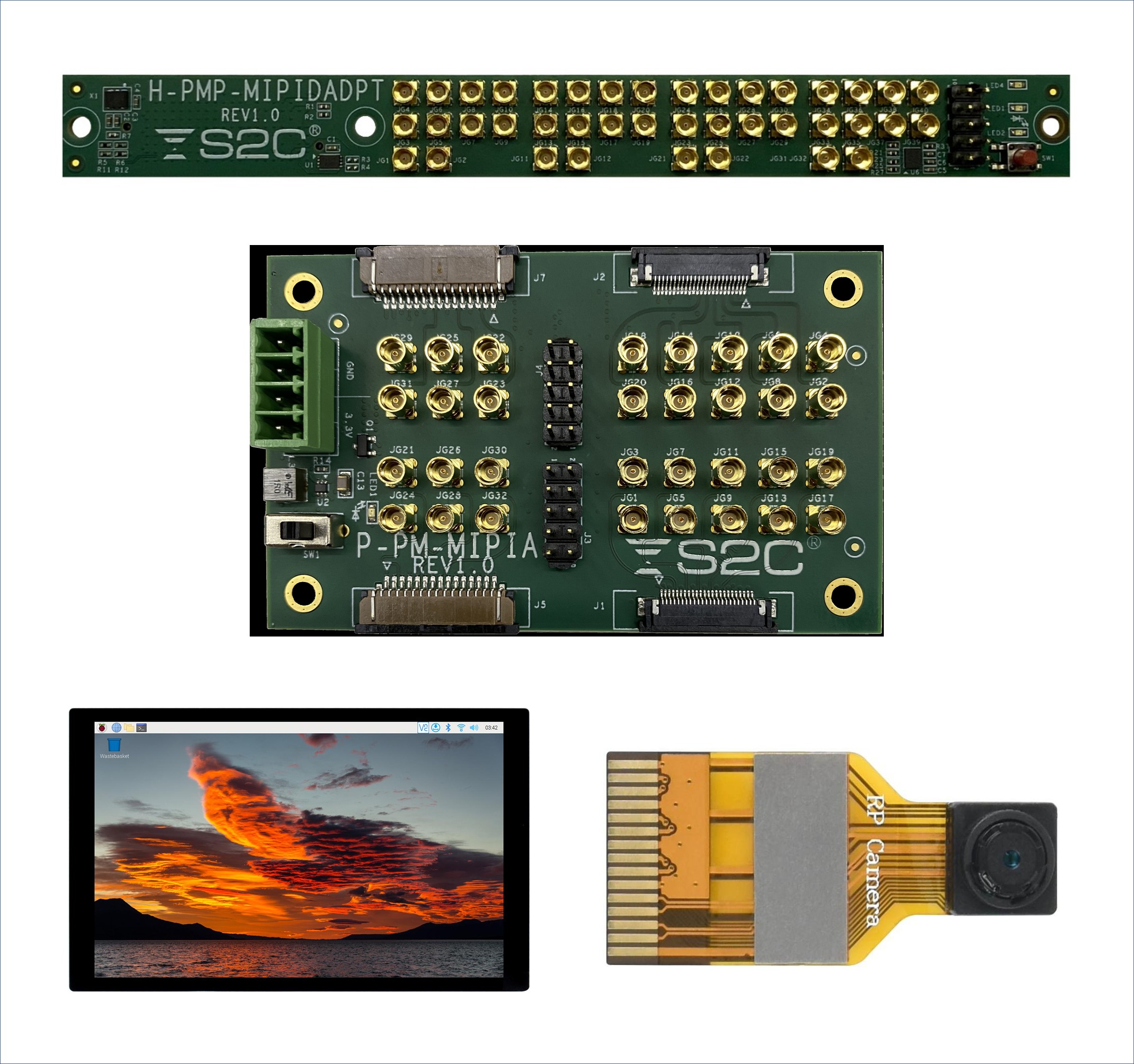

Prodigy+ MIPI D-PHY Adapter Kit
Product features
Extends the MIPI D-PHY signals from Prodigy+ to MMCX connectors, to interface with CSI cameras or DSI displays.
Product package (H-PMP-MIPIDAK)
Prodigy+ MIPI D-PHY Adapter Module (H-PMP-MIPIDADPT)
one Adapter Module Type A (P-PM-MIPIA)
one 8-inch DSI LCD
one 500M pixels FPC camera

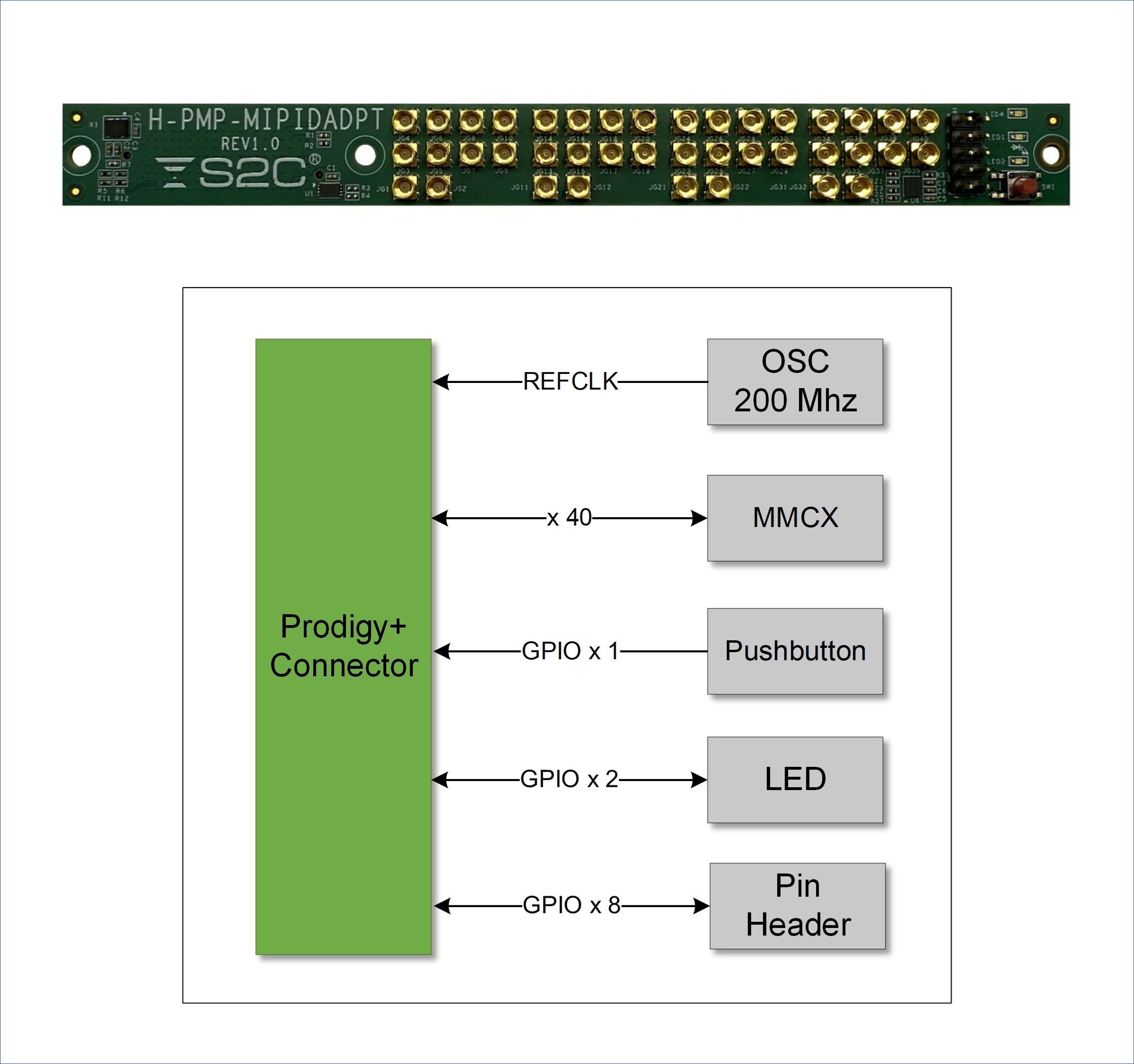

Prodigy+ MIPI D-PHY Adapter Module
Product features
Forty MMCX connectors supporting 4 x 4 lane or 2 x 8 lane MIPI interfaces
One constant clock (200 MHz)
One header (2 x 5 pin, 8 GPIOs)
Two LEDs
One pushbutton
Occupies one Prodigy+ connector
Product package (H-PMP-MIPIDADPT)
One Prodigy+ MIPI D-PHY Adapter Module

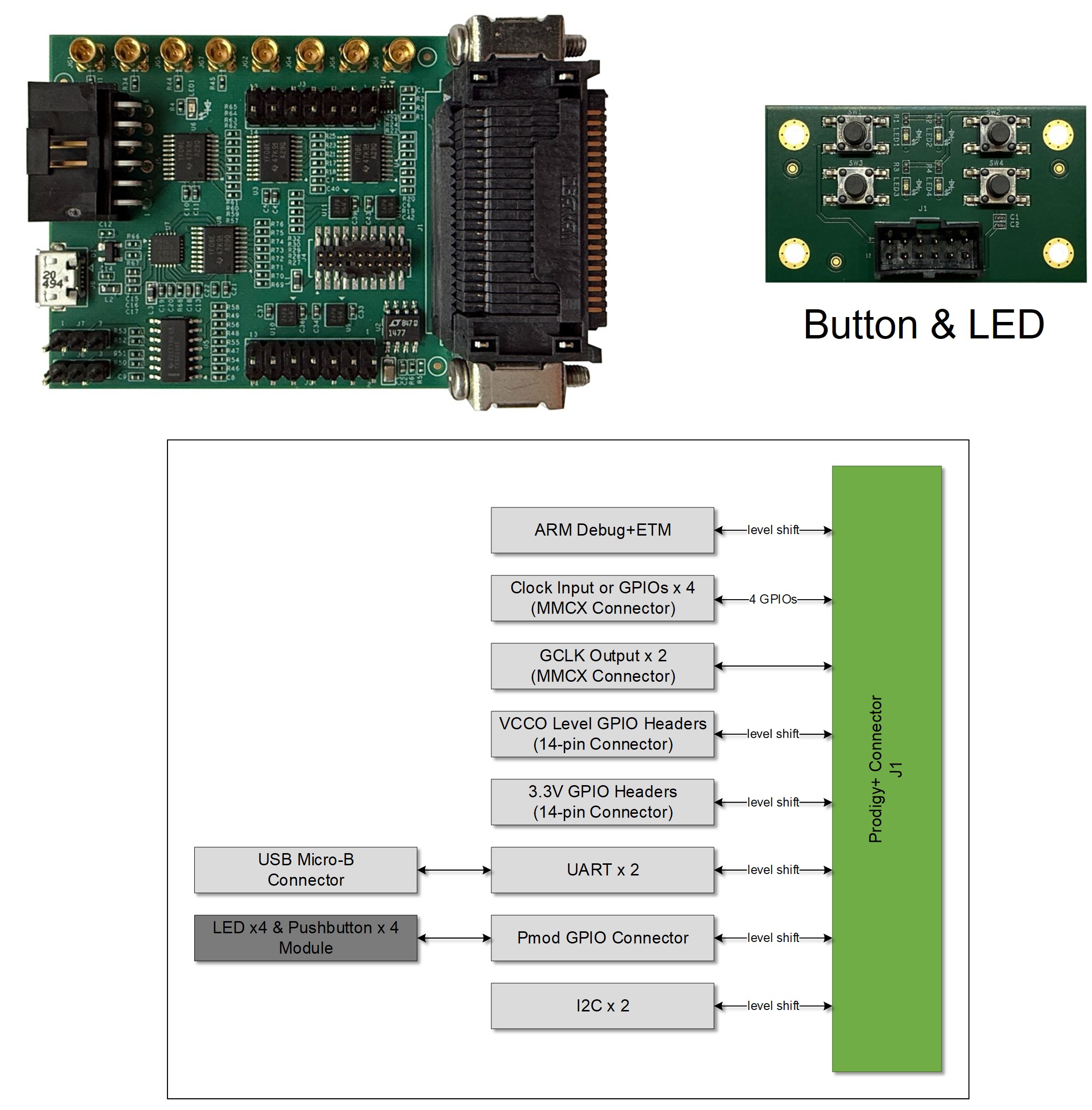

Prodigy+ GPIO Extension Module V2
Product features
One GPIO header (14-pin 3.3v-level)
One high-speed VCCO-level GPIO header (14-pin)
One ARM Cortex Debug + ETM connector (20-pin)
One micro-USB port hosting two UARTs
Four single-ended MMCX clock connectors for user FPGA
Two pairs of differential MMCX clock connectors (for global clocks)
One PMOD connector (12-pin 3.3V-level) with GPIO interface
Two I2C headers (3.3V-level)
Four pushbuttons
Four LEDs (green)
Occupies one Prodigy+ connector
Product package (H-PMP-GPIOE V2)
One Prodigy+ GPIO Extension Module V2
One Button & LED Module
One 12-pin IDC flat cable

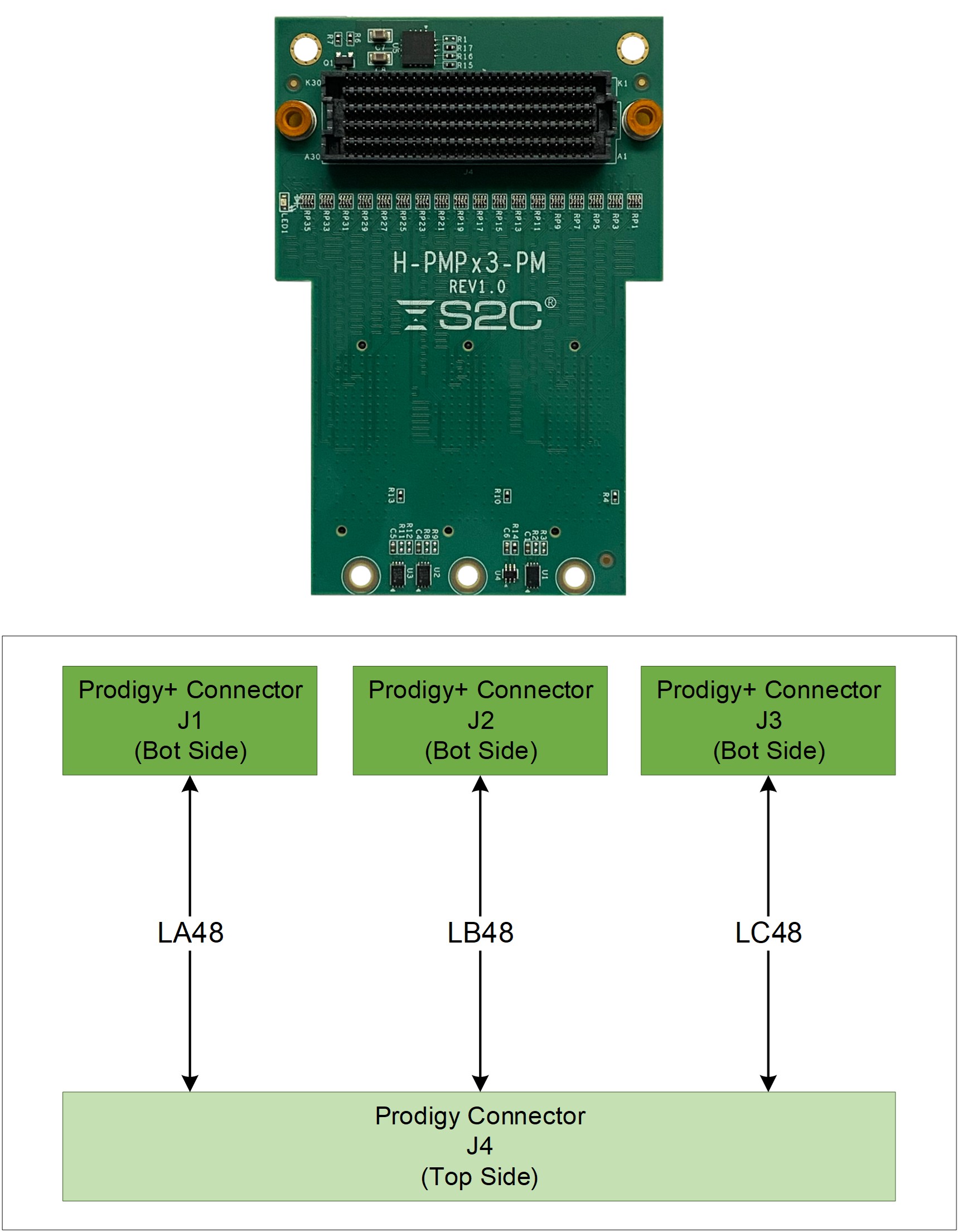

3x Prodigy+ to Prodigy Converter Module
Product features
Converts three Prodigy+ connectors to one Prodigy connector
The voltage of Prodigy+ connectors is fixed to 1.5V
Occupies three Prodigy+ connectors
Product package (H-PMPx3-PM)
One 3x Prodigy+ to Prodigy Converter Module

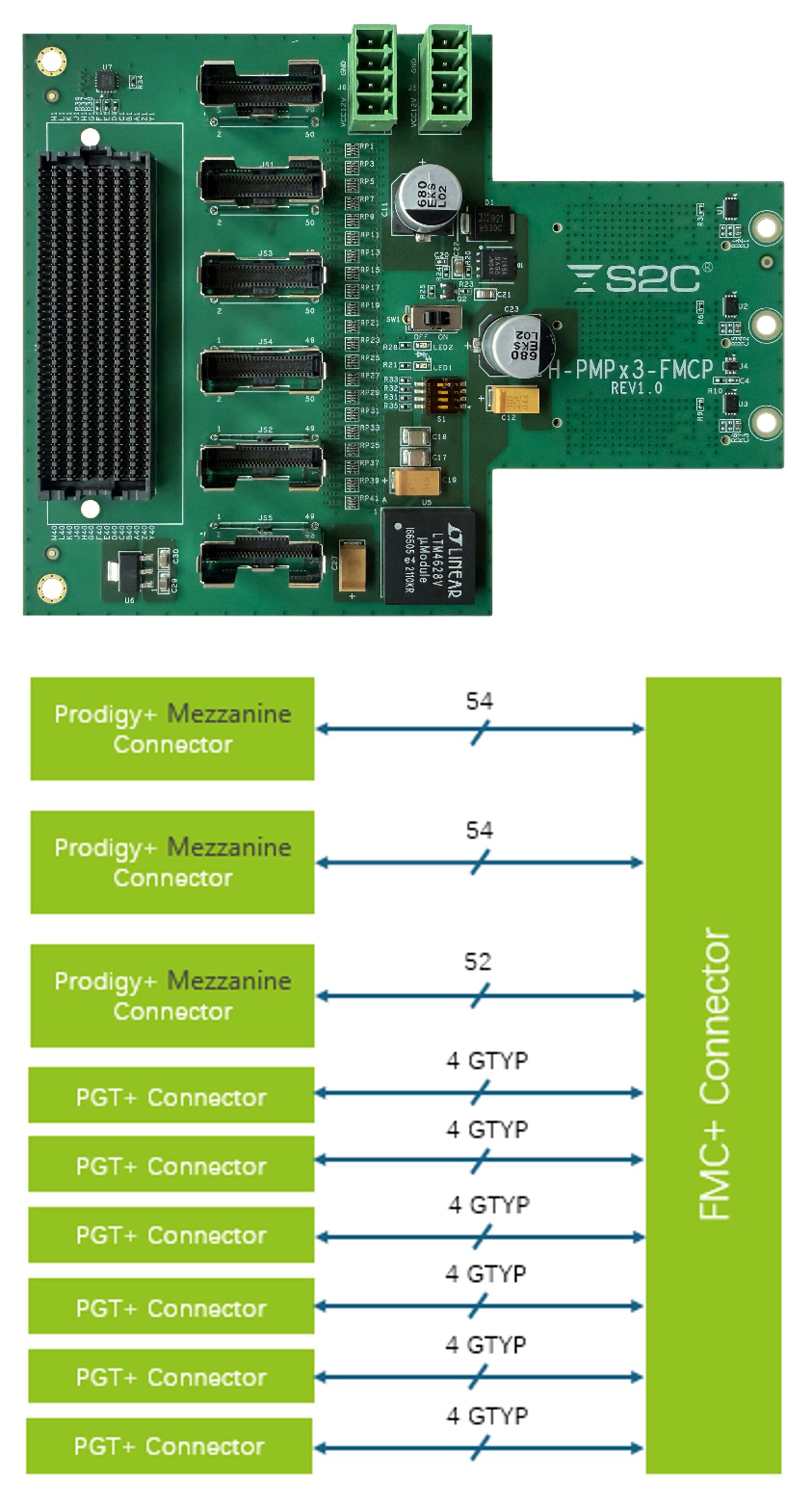

3x Prodigy+ to FMC+ Converter Module
Product features
Converts 3 Prodigy+ and 6 PGT+ connectors to one FMC+ connector
Occupies 3 Prodigy+ and 6 PGT+ connectors
Product package (H-PMPx3-FMCP)
One 3x Prodigy+ to FMC+ Converter Module

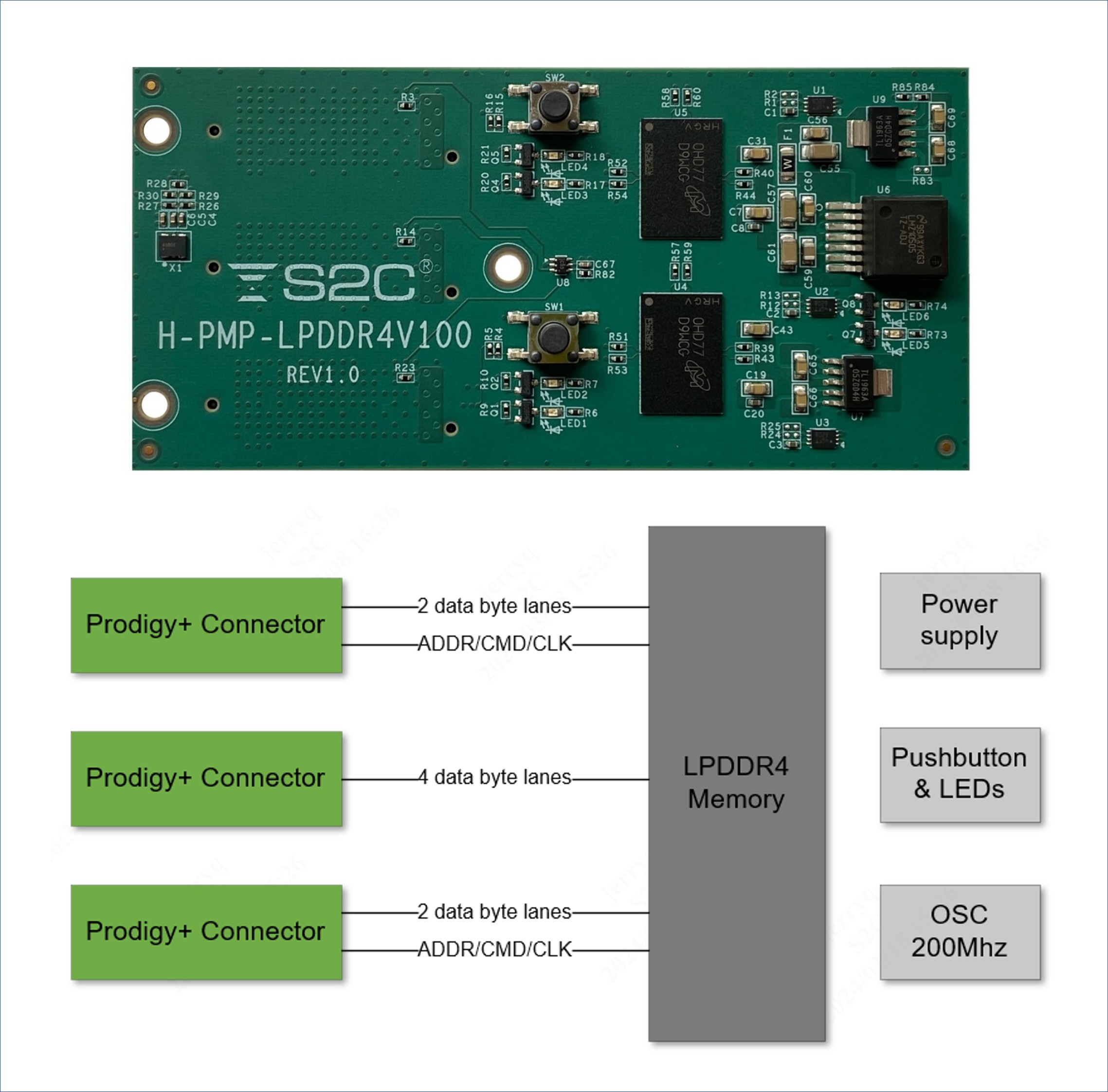

Prodigy+ LPDDR4 Memory Module for S8-100
.jpg "Prodigy+_LPDDR4_内存模块_(S8-100版).jpg")
Product features
Two 16Gb LPDDR4 SDRAM (32Gb /4GB total)
One on-board LVDS OSC providing system reference clock
Two pushbuttons
Six LEDs
Occupies three Prodigy+ connectors
Product package (H-PMP-LPDDR4V100)
One Prodigy+ LPDDR4 Memory Module for S8-100

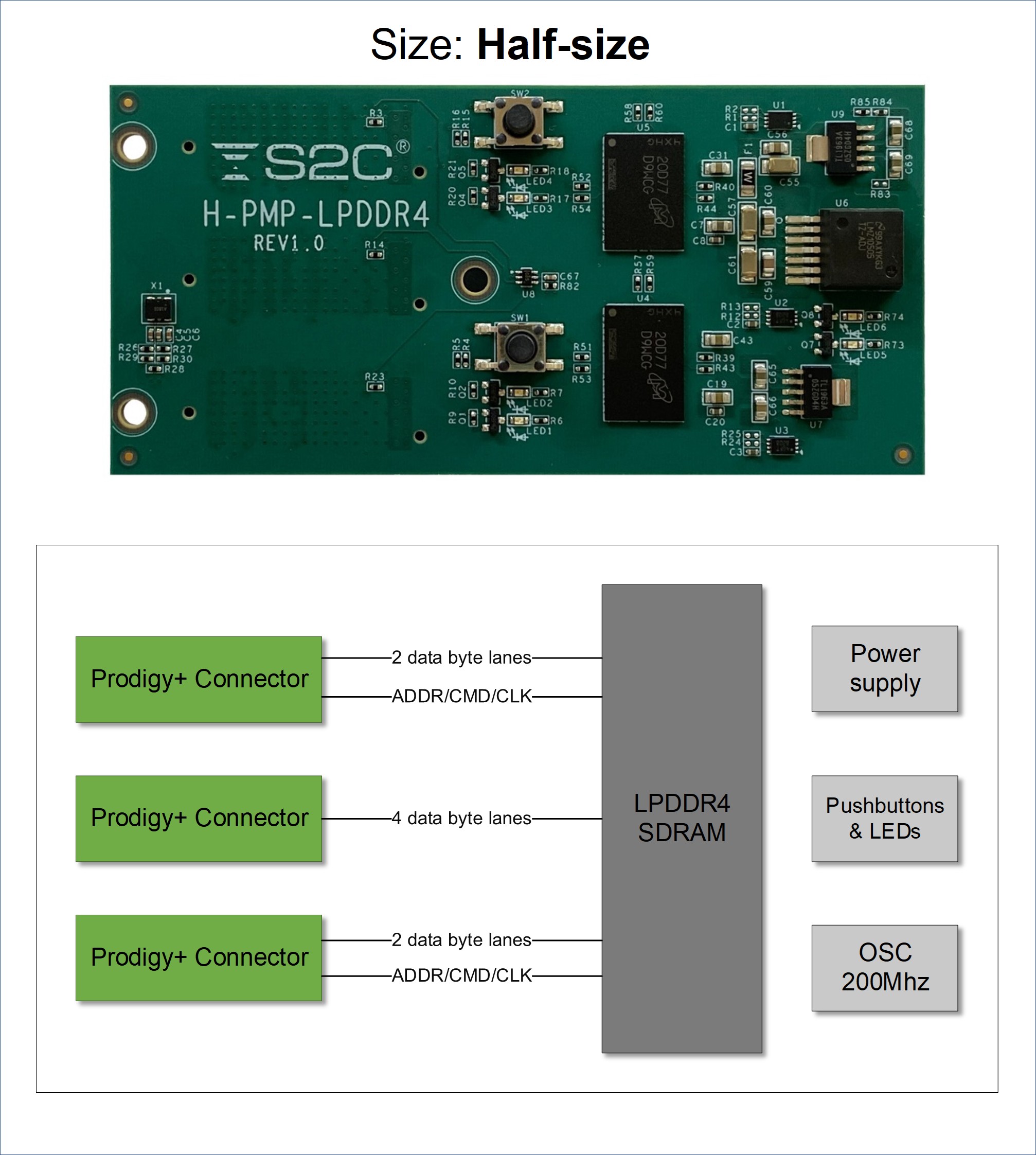

Prodigy+ LPDDR4 Memory Module for S8-40
Product features
Two LPDDR4 SDRAM
One on-board LVDS OSC providing reference clock
Two pushbuttons
Six LEDs
Occupies three Prodigy+ connectors
Product package (H-PMP-LPDDR4V40)
One Prodigy+ LPDDR4 Memory Module for S8-40
Prodigy+ DDR4 Memory Module for S8-100
Product features
One DDR4 SO-DIMM socket
One on-board LVDS OSC providing system reference clock
One pushbutton
Five LEDs
Occupies three Prodigy+ connectors
Product package (H-PMP-DDR4V100)
One Prodigy+ DDR4 Memory Module for S8-100
One 32 GB DDR4 ECC SODIMM Memory Module
Prodigy+ DDR4 Memory Module for S8-40
_.jpg "Prodigy+_DDR4_内存模块_(S8-40版)_.jpg")
Product features
One DDR4 SO-DIMM socket
One onboard LVDS OSC providing system reference clock
One pushbutton
Five LEDs
Occupies three Prodigy+ connectors
Product package (H-PMP-DDR4V40)
One Prodigy+ DDR4 Memory Module for S8-40
One 32 GB DDR4 ECC SODIMM Memory Module

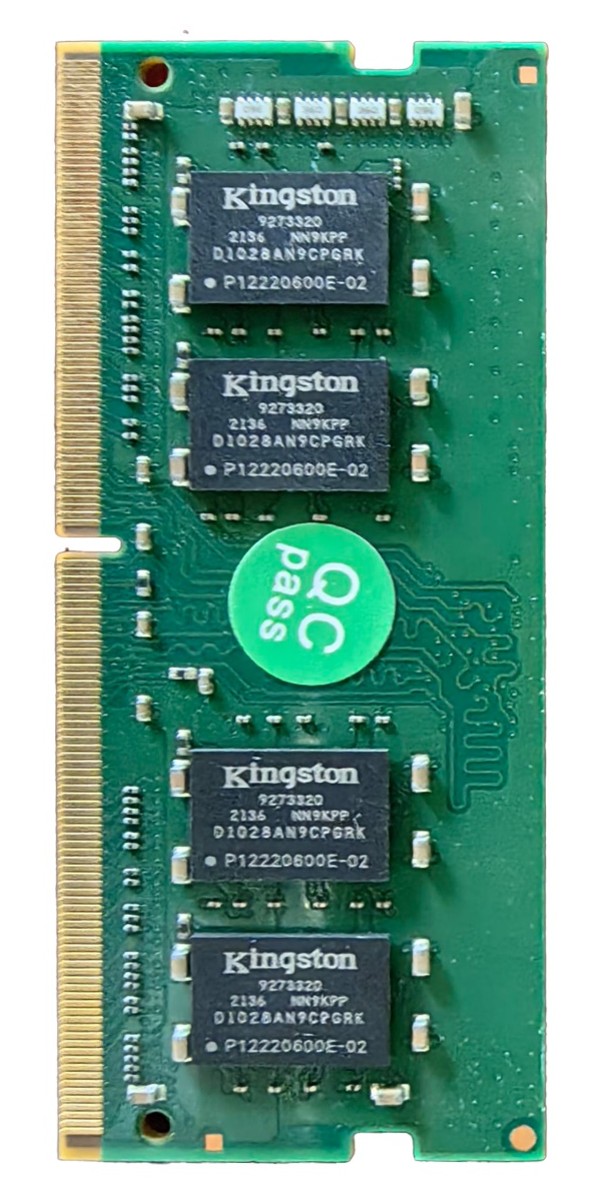

DDR4 Memory Module: 32GB ECC SODIMM
Product features
DDR4 functionality and operations supported
Fast data transfer rates: PC4-3200 or PC4-2666
32GB (4 Gig x 72)
Data bus inversion (DBI) for data bus
Dual-rank
On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Product package (H-ECCDDR4-32GB)
One Memory Module DDR4 32GB ECC SODIMM
Prodigy+ Flash Interface Module
Product features
One TSOP56 BGA socket supporting NOR Flash
One 16-SOIC (300mil width) socket supporting SPI Flash
One 8-SOIC (200mil width) socket supporting SPI Flash
One WSON 8 x 6 mm socket supporting SPI Flash
One 8-SOIC (200mil width) socket supporting I2C EEPROM
One MicroSD card socket
One 1.8V I3C header
One 3.3V I3C header
Two user LEDs
Two user pushbuttons
Occupies three Prodigy+ connectors
Product package (H-PMP-FIM)
One Prodigy+ Flash Interface Module

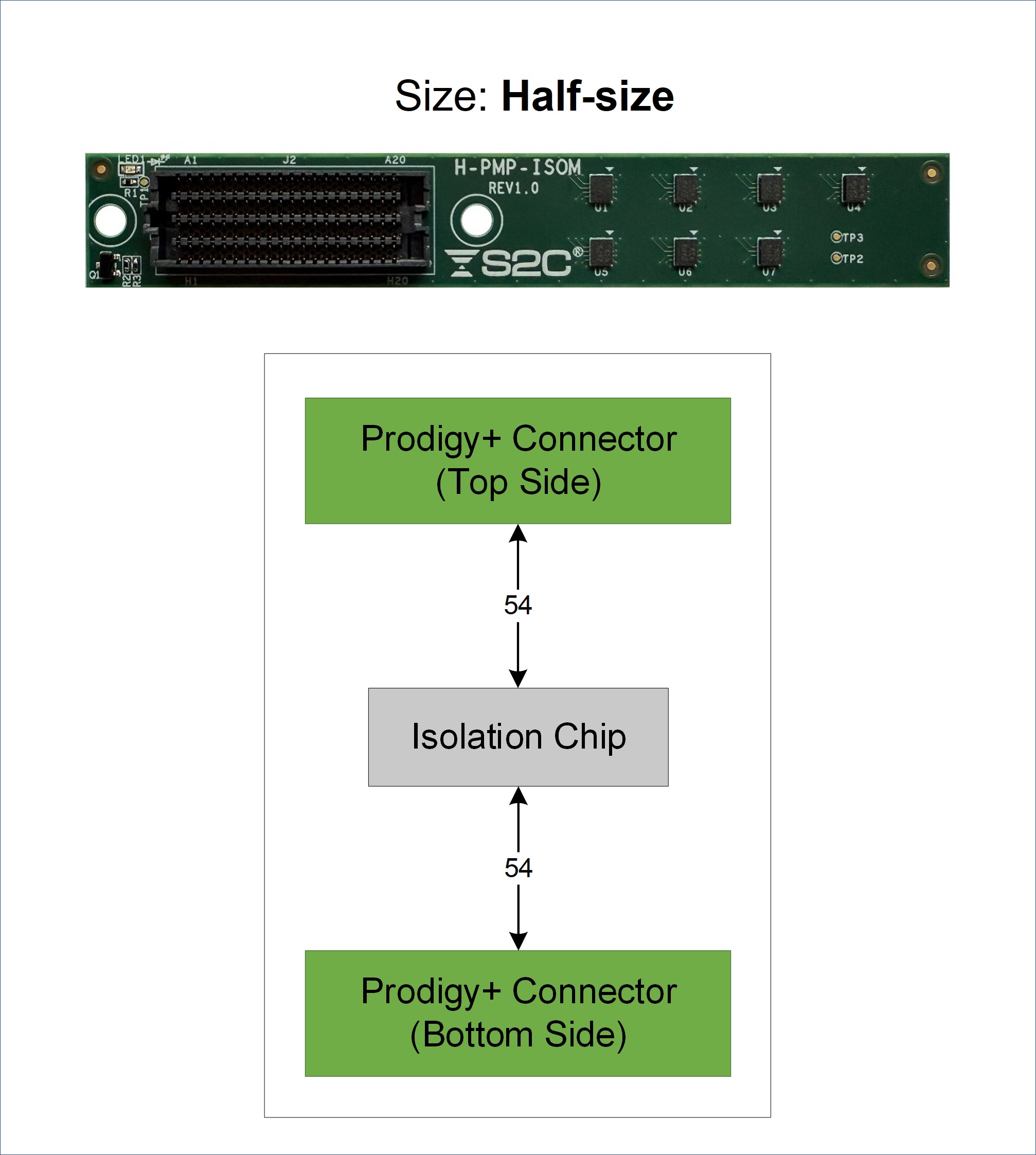

Prodigy+ Isolation Module
Product features
Provides level shifting circuit between the daughter card and FPGA
Occupies 1 Prodigy+ connector
Product package (H-PMP-ISOM)
One Prodigy+ Isolation Module
Prodigy+ ARM Connectivity Module for S8-40
.jpg "Prodigy+_ARM_互连模块_(S8-40版).jpg")
Product features
Two QSPI
One Micro SD 3.0
One RGMII Ethernet
One RS232 UART header
Two I2C headers (3.3V-level)
Occupies two Prodigy+ connector
Product package (H-PMP-ACMV40)
One Prodigy+ ARM Connectivity Module for S8-40
One Micro SD card

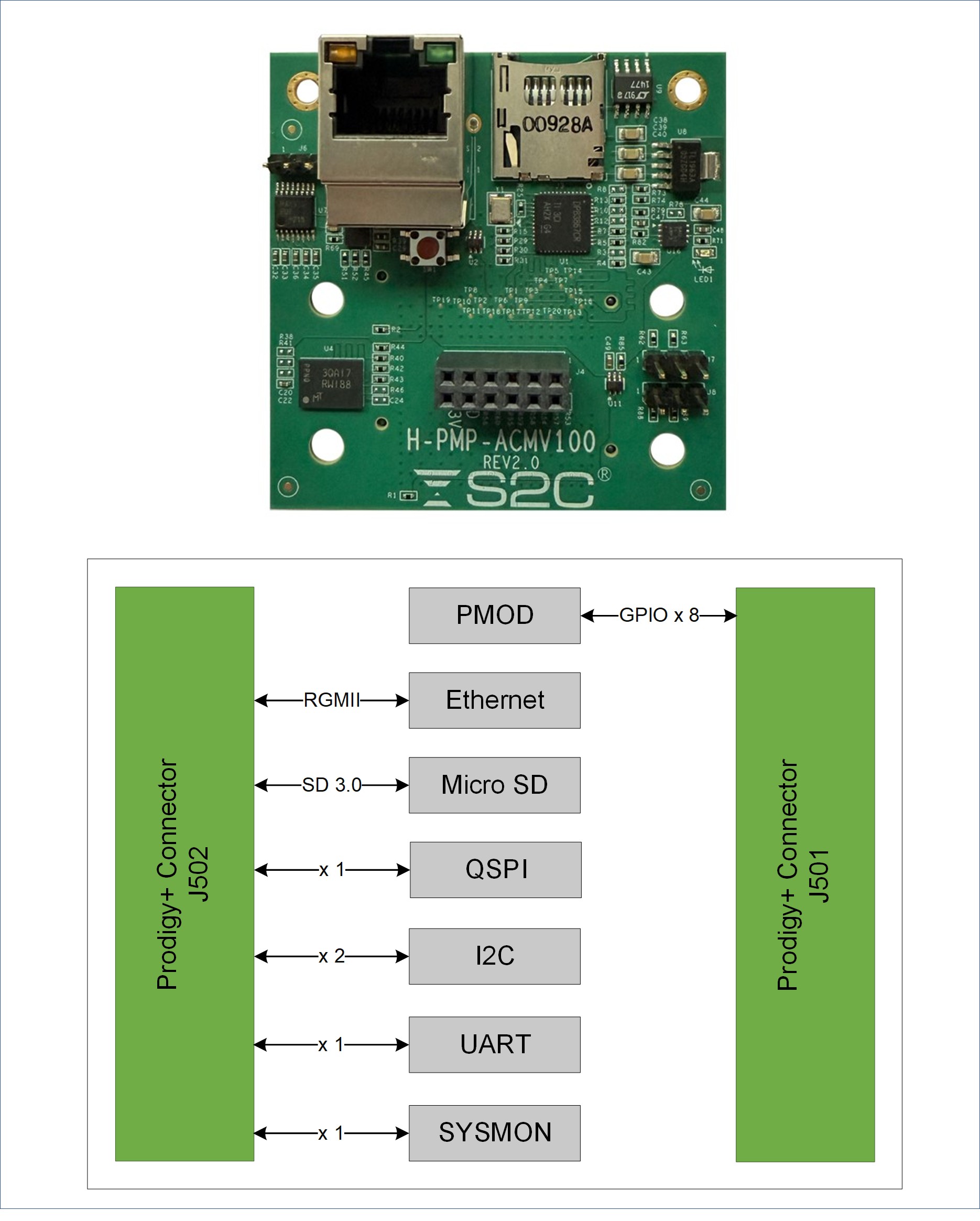

Prodigy+ ARM Connectivity Module for S8-100 V2
_V2.jpg "Prodigy+_ARM_互连模块_(S8-100版)_V2.jpg")
Product features
One QSPI
One Micro SD 3.0
One RGMII Ethernet
One RS232 UART header
Two I2C headers (3.3V level)
One PMOD header (3.3V level)
Occupies two Prodigy+ connectors
Product package (H-PMP-ACMV100 V2)
One Prodigy+ ARM Connectivity Module for S8-100 V2
Prodigy+ IO Testing Module
Product features
One 160-pin Prodigy+ connector
Product package (H-PMP-IOT)
One Prodigy+ IO Testing Module

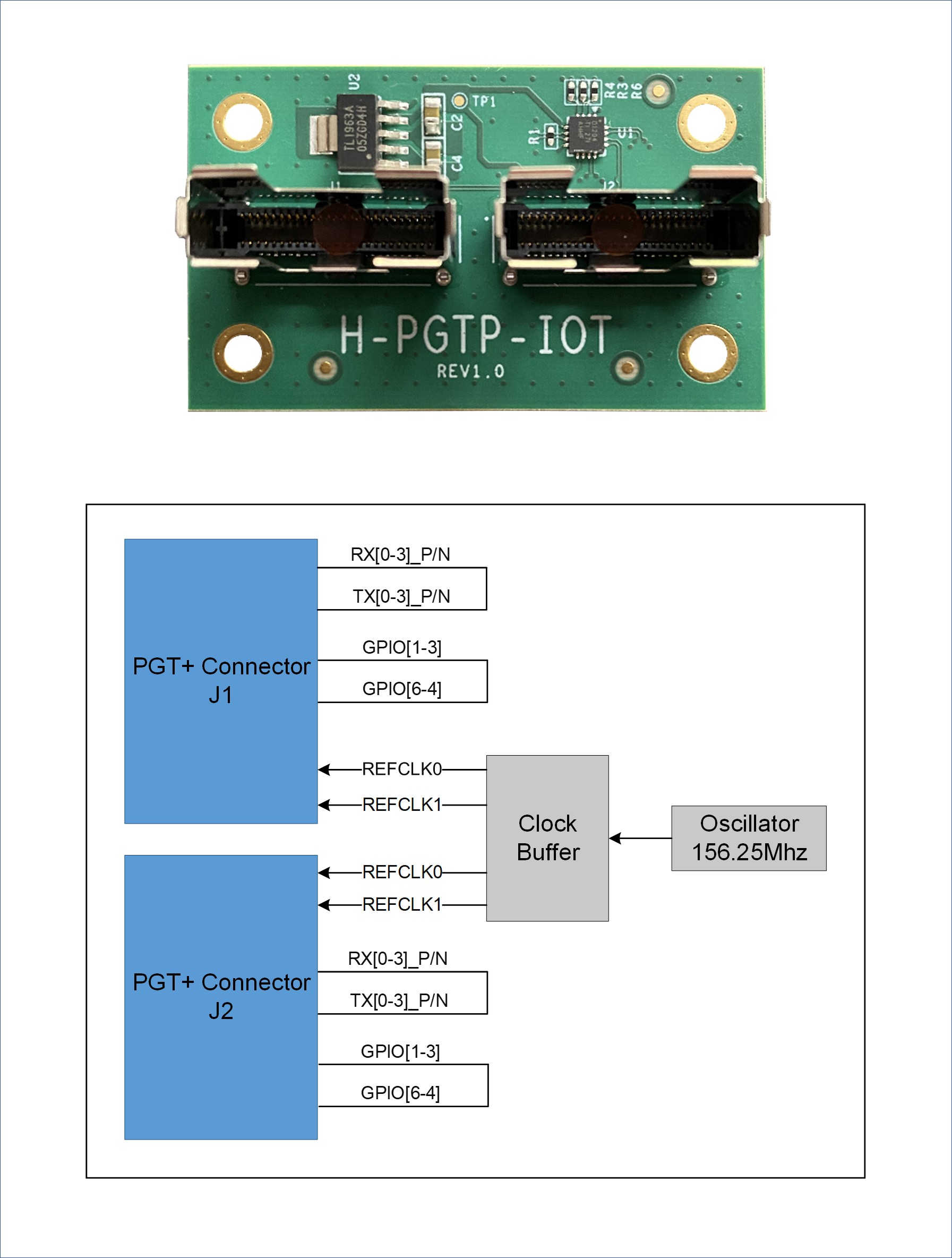

PGT+ IO Testing Module
Product features
Two PGT+ connectors
One LVDS 156.25 MHz oscillator
Occupies two PGT+ connectors
Product package (H-PGTP-IOT)
One PGT+ IO Testing Module

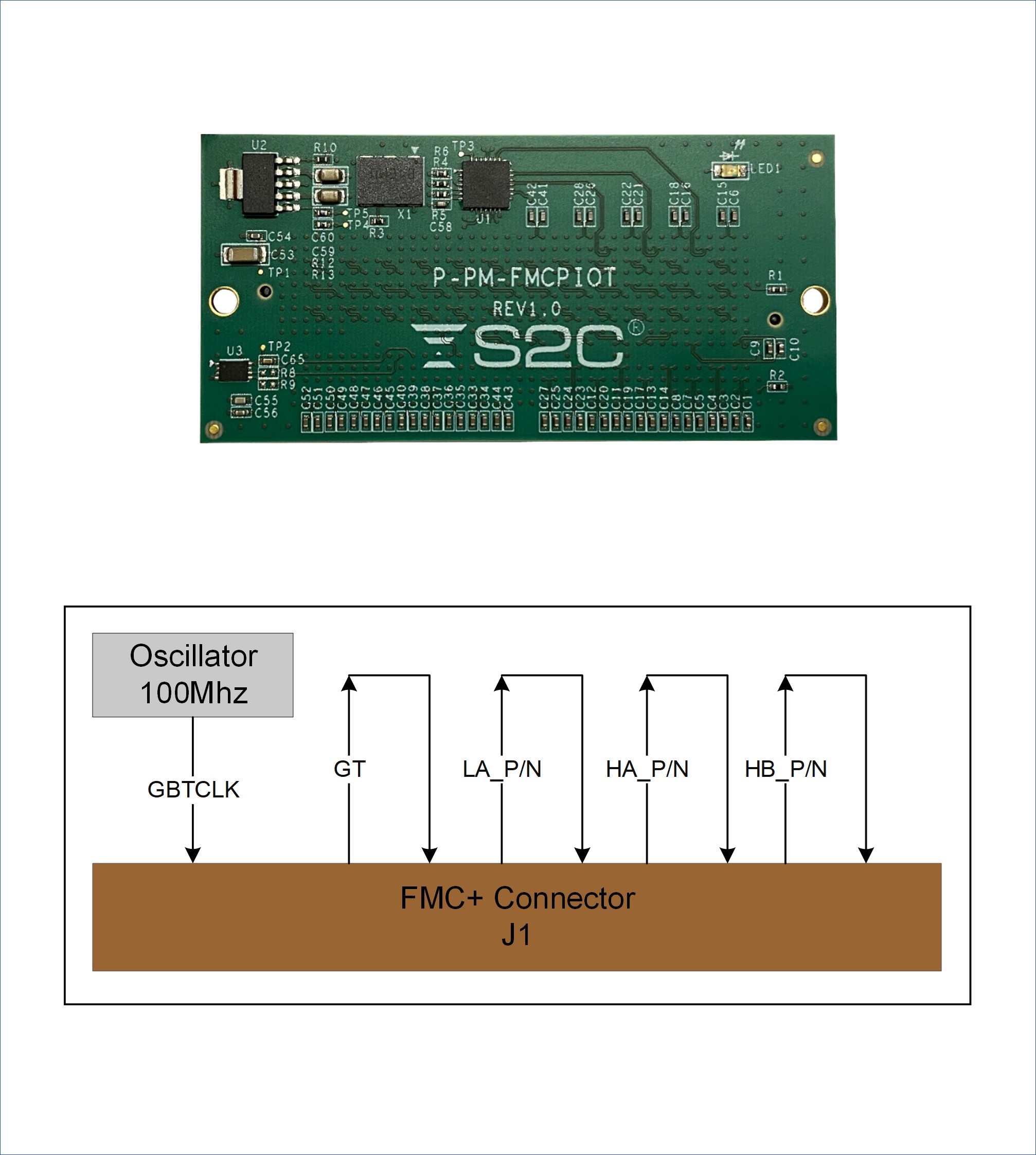

FMC+ IO Testing Module
Product features
One 560-pin FMC+ connector
One 100 MHz crystal oscillator on the board
Product package (H-FMCP-IOT)
One FMC+ IO Testing Module

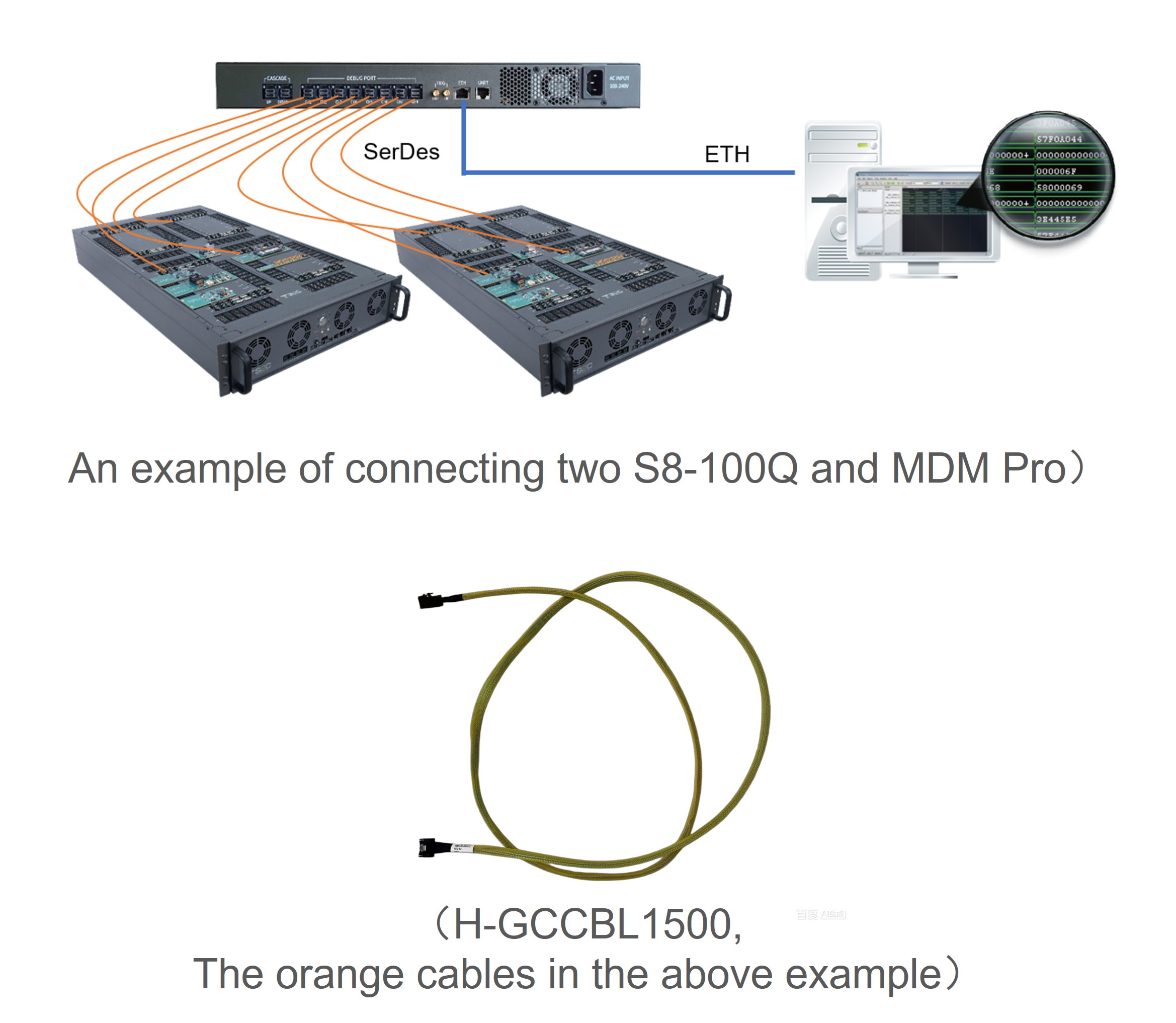

Global Clock Cable
Product features
Connect the S8-100 LS and MDM Pro, one is a MiniSAS connector and the other is an MCIO connector.
Standard cable lengths: 1500mm
Cable lengths available
H-GCCBL1500

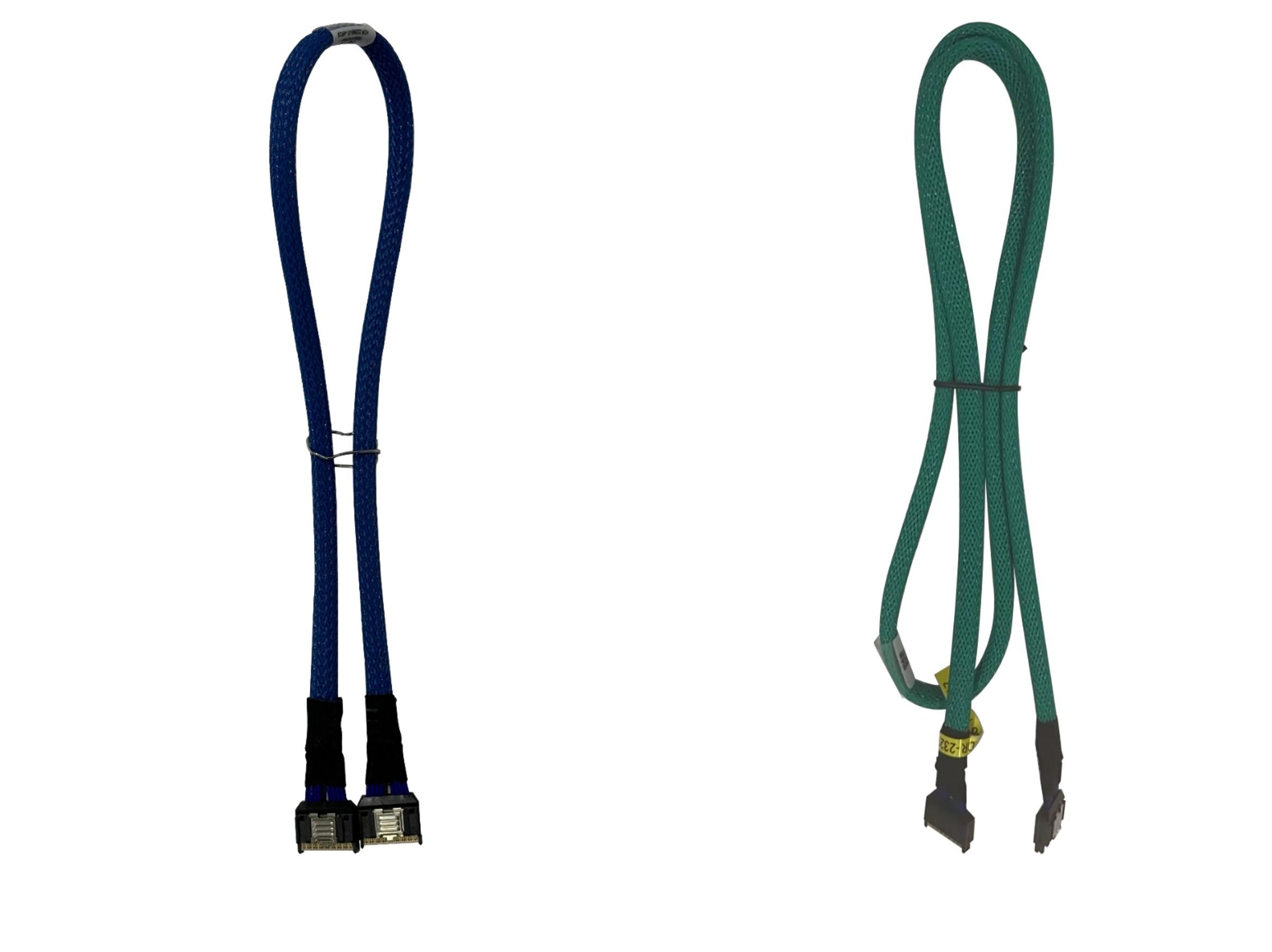

PGT+ Cable
Product features
Connect two PGT+ connectors
Standard cable lengths: 500mm, 1000mm
Cable lengths available
H-PGTP-CBL500
H-PGTP-CBL1000
Prodigy MCIO-HPC Cable
Product features
Interconnects two Prodigy+ to MCIO-HPC Converter Modules.
The pins are defined as pin1 to pin1.
Support the differential voltage standard
Standard cable lengths: 254mm. 600mm, 1000mm
Cable lengths available
P-MCIO-HPC254
P-MCIO-HPC600
P-MCIO-HPC1000

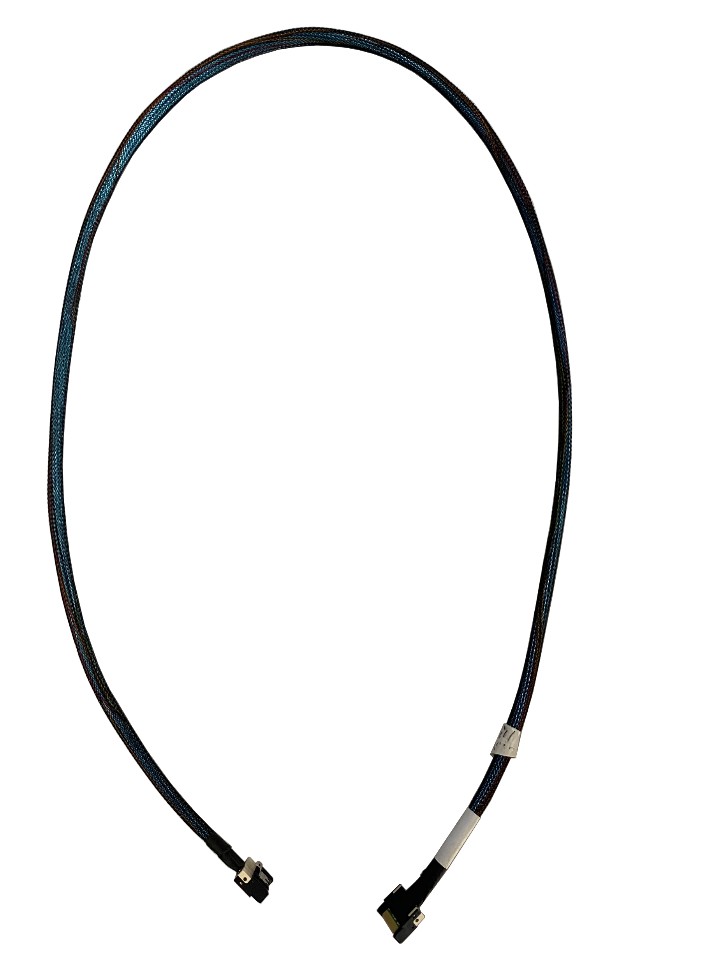

Prodigy MCIO-LPC Cable
Product features
Connects the two MCIO-LPC connectors
The pins are defined as pin1 to pin1.
Support the differential voltage standard
Standard cable lengths: 500mm, 1000mm, 1500mm, 2000mm & 3000mm
Cable lengths available
P-MCIO-LPC500
P-MCIO-LPC1000
P-MCIO-LPC1500
P-MCIO-LPC2000
P-MCIO-LPC3000

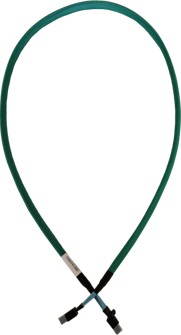

Prodigy MCIO-MPC Cable
Product features
Connects the two MCIO-MPC connectors
The pins are defined as pin1 to pin1.
Support the differential voltage standard
Standard cable lengths: 600mm,1000mm
Cable lengths available
P-MCIO-MPC600
P-MCIO-MPC1000

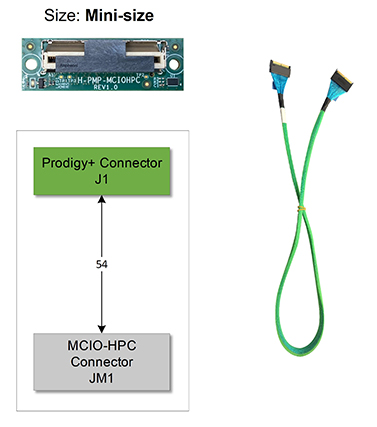

1000mm Prodigy+ Interconnection Kit
Product features
Interconnects two Prodigy+ connectors.
The cable length is 600mm, 1000mm.
Product package (H-PMP-IK1000, H-PMP-IK600)
Two Prodigy+ to MCIO-HPC Converter Modules
One MCIO-HPC cable

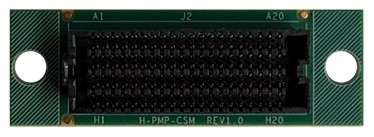

Prodigy+ Connector Spacer Module
Product features
Adds 10.1mm of height between a Prodigy+ socket and a Prodigy+ Mezzanine connector
Occupies 1 Prodigy+ connector
Product package (H-PMP-CSM)
One Prodigy+ Connector Spacer Module
This site uses cookies to collect information about your browsing activities in order to provide you with more relevant content and promotional materials, and help us understand your interests and enhance the site. By continuing to browse this site you agree to the use of cookies. Visit our cookie policy to learn more.
-383.png)
